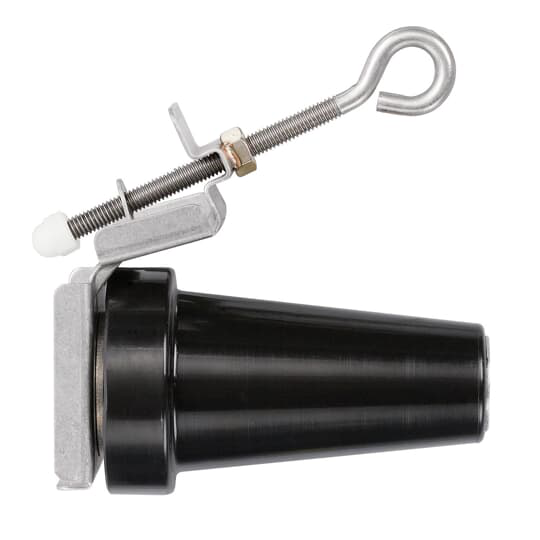

Elastimold 750SOP
![Image of Elastimold 750SOP](http://williamsautomation.com/cdn/shop/files/1a46b1a5722ce717a162da1719e63316c9eb6462-large_1000x1000.png?v=1725460936)
![](http://williamsautomation.com/cdn/shop/files/free-shipping.png?v=1704404895&width=400)
![](http://williamsautomation.com/cdn/shop/files/warranty.png?v=1704404905&width=400)
![](http://williamsautomation.com/cdn/shop/files/bbb.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/overnight.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/usa.png?v=1704404908&width=400)
Description
Elastimold 750SOP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Application
- The 750SOP is inserted into the parking stand with an insulated hot stick and secured in place. Mating Elastimold 755LR/756LR deadbreak elbows can then be placed on the 750SOP to provide a fully shielded and fully submersible connection. Provisions for grounding the 750SOP mounting bracket are included.
- Brand / Label
- Elastimold
- Effective Date
- 19980115
- Material
- EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V"
- Product Type
- Parking Bushing
- Size
- 3.00 inch (76.2 mm) Diameter, 5.00 inch (127.0 mm) Length, 5.02 inch (127.6 mm) Center of Bushing to top of Eye Bolt.
- Special Functions
- Fully rated 35kV, 600 Amp Deadbreak Insulated Parking Bushing. Allows visible external separation, isolation, and dead-ending. Stainless Steel Bracket. Hot Stick Operable.
- Standards
- ANSI/IEEE Standard 386
Classifications
- IDEA Granular Category Code (IGCC)
- 1779 >> Cable accessories
- WEEE Category
- Product Not in WEEE Scope
Ordering
- Country of Origin
- United States (US)
- Selling Unit of Measure
- each
