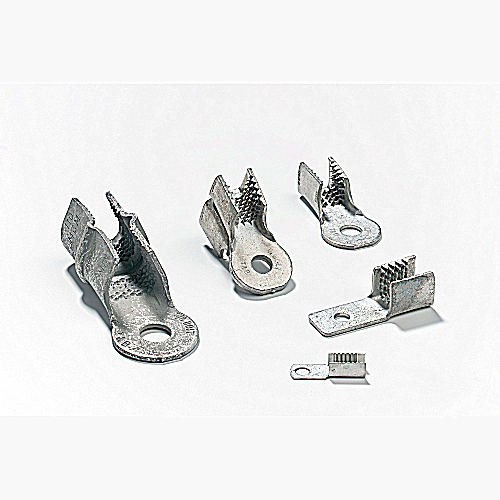

Dragon Tooth 204210-2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 5/16 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
Dragon Tooth 204210-2 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- RoHS Compliance
- Yes (exemption 06)
Dimension Information
- A (inches)
- .53
- B (inches)
- .61
- C (inches)
- 1.58
- D (inches)
- .81
- E* (inches)
- .25
General
- Finish
- Tin-Plated
- Material
- Copper
- Stud Size
- 5/16
Notes
- **Note
- Not recommended for aluminum magnet wire finer than 21 gauge or 0.4 mm². (a) Four wires max. (b) Six wires max. (c) Six wires max. each barrel (d) Conductors heavier than 6 AWG or 13 mm² require special dies. Contact Thomas & Betts for assistance. (e) Crimping dies may not bottom. Connector height will depend on number and size of wires in barrel. Pump must deliver 9800 psi minimum.
- *Note
- Reference dimension (crimped height). See installing die illustration for gauging.
Packaging
- Inner Package
- 100
- Order Multiple
- 100
- Outer Package
- 500
- Package Height
- 6.7
- Package Length
- 10.4
- Package Width
- 8.8
- T&B Sold in UOM
- Each
- T&B Weight Per UOM
- 2 lbs. per 100
Specifications
- Circular Mil Area
- 10,380 - 52,480
- Rectangular Wire Range Thickness (inches)
- .10 - .16
- Rectangular Wire Range Width (inches)
- .10 - .26
- Round Wire Range AWG
- 12(b) - 2(c)
Tooling
- Hydraulic Tooling
- 13100A, 13400, 13642M, TBM15I
