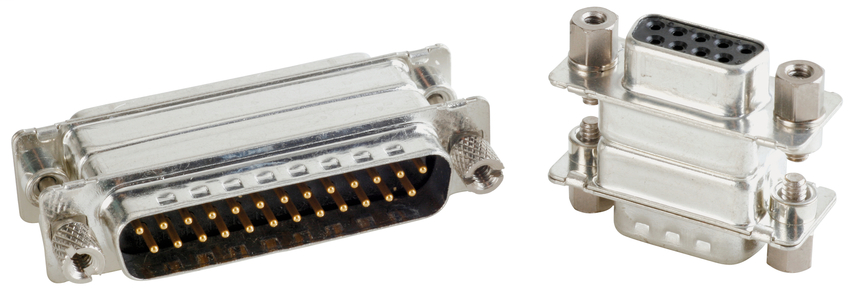

CONEC MAP1XAAAH02R262X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Filter D-SUB, 9-pos., PI-Filter, 2x 1300 pF, Adapter Plug/Socket
CONEC MAP1XAAAH02R262X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product CSA approved
- CSA File: LR 115000-7
- Product UL approved [UL File]
- E202784
Material Data
- Insulator color
- Black
- Insulator material
- High temperature plastic UL 94 V-0
- Mounting option material
- Copper Alloy
- Plating mounting option
- Nickel
- Shell material
- Steel
Specifications
- Contact type
- Adapter Plug/Socket
- Hardware options mating side
- Threaded bolt
- Size/Number of positions
- 9-pos.
- Standard current rating
- IEC 60807-2
- Standard dielectric voltage
- IEC 60807-2
- Standard insertion / extraction force
- IEC 60807-2
- Standard IP rating
- ISO20653
- Standard mating cycles
- IEC 60512-9a
- Standard working voltage
- IEC 60807-2
- Thread type
- UNC 4-40
Technical Data
- Capacitor value signal contact
- 2x 1300 pF
- Current rating signal
- 7,5 A UL 5 A CSA,VDE
- Dielectric with standing voltage signal
- 424 V DC
- Extraction force
- 30 N
- Filter type
- PI
- Insertion force
- 30 N
- IP rating
- IP 20
- Mating cycles
- 50
- max. working temperature
- +105° C
- min. working temperature
- -25° C
- Quality class
- Quality class 3
- Working voltage signal
- 100 V DC
