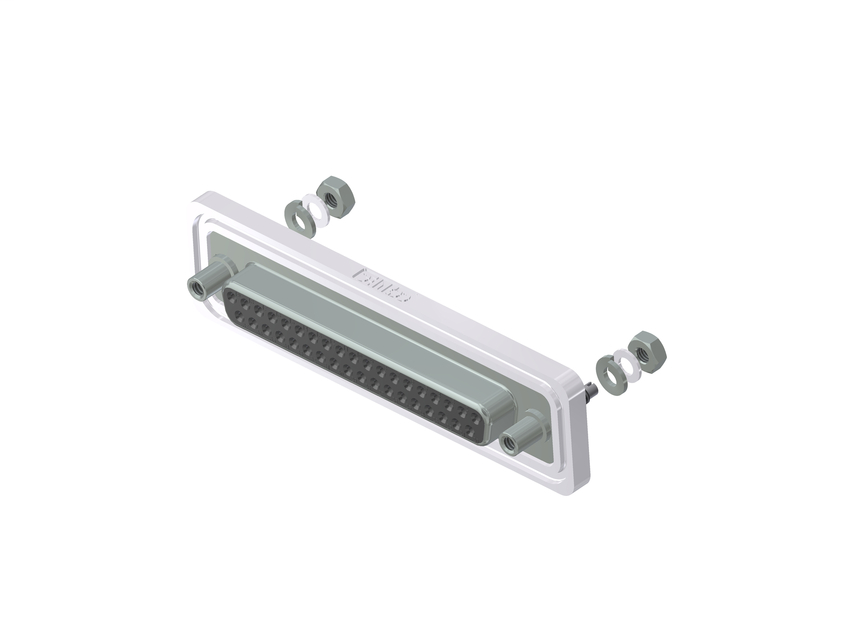

CONEC 6STD37SAM99B70X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
IP67 D-SUB, 37-pos., Socket, Solder cup
CONEC 6STD37SAM99B70X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product CSA approved
- CSA File: LR 115000-1
Material Data
- Insulator color
- Black
- Insulator material
- PBT GF UL 94 V-0
- Plating signal contact (mating area)
- Gold over nickel
- Plating signal contact (termination area)
- Gold over nickel
- Shell material
- Brass
- Signal contact material
- Copper alloy
Specifications
- Contact type
- Socket
- Hardware options mating side
- Threaded insert
- Mounting style
- Straight
- Product type
- IP67 D-SUB
- Size/Number of positions
- 37-pos.
- Standard dielectric voltage
- IEC664-1
- Standard insertion / extraction force
- DIN41652
- Standard IP rating
- IEC 60529
- Standard mating cycles
- DIN41652
- Standard working voltage
- DIN41652
- Termination signal [e.g. clamp, crimp, solder, SMT]
- Solder cup
- Thread type
- UNC 4-40
Technical Data
- Contact resistance standard
- 10 mOhm
- Current rating signal
- 7,5 A
- Dielectric with standing voltage signal
- 1000 V
- Extraction force
- 123 N
- Insertion force
- 123 N
- IP rating
- IP67
- Mating cycles
- 50
- max. working temperature
- +105° C
- min. working temperature
- -25° C
- Quality class
- Quality class 3
- Working voltage signal
- 125 V
