CONEC 42-10032
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

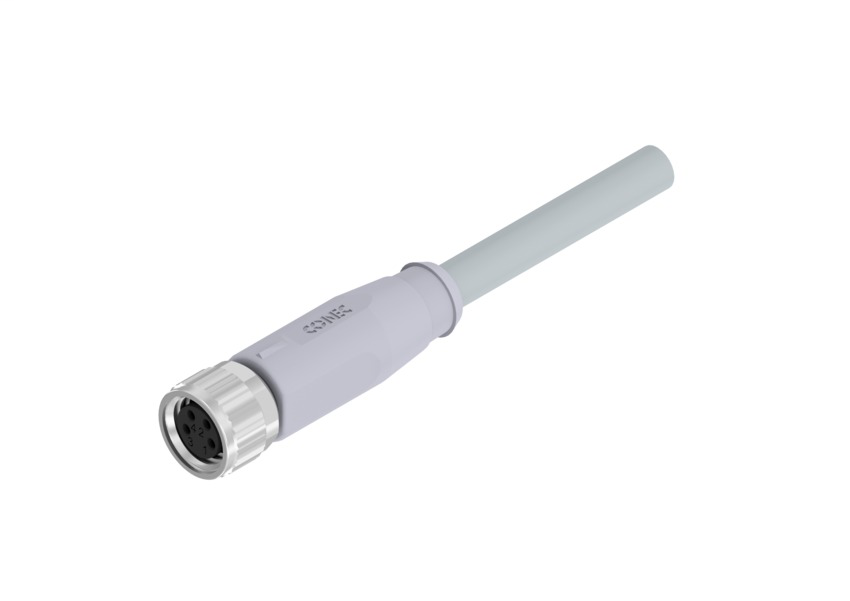

M8x1, A-coded, Overmoulded Connectors, Female connector axial, single ended, 4- pos., Unshielded, 2 m, 0,25 mm², PVC
CONEC 42-10032 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Material Data
- Coupling nut /-screw material
- Zinc die cast
- Coupling nut /-screw plating
- Nickel
- Housing color
- Grey
- Housing material
- TPU, UL94
- Insulator color
- Black
- Insulator material
- PA, UL 94
- Plating signal contact (mating area)
- Gold over nickel
- Signal contact material
- Copper alloy
Specifications
- Coding
- A-coded
- Design
- single ended
- IP range A-side
- IP67
- Length cable/wire
- 2 m
- Locking type
- Screwable
- Product type
- Connectors overmoulded
- Size A-side
- M8x1
- Size/Number of positions
- 4- pos.
- Standard current rating
- IEC 61076-2-104
- Standard insulation resistance
- IEC 60512
- Standard IP rating
- IEC 60529
- Standard mating cycles
- IEC 60512-9a
- Standard pollution degree
- IEC 60664-1
- Standard rated voltage
- IEC 61076-2-104
- Standard temperature range
- IEC 60664-1
- Style
- Overmoulded Connectors
- Type A-side [ Female, Male]
- Female connector axial
Technical Data
- Cable color
- Grey
- Cable quality
- LiYY
- Cable quality [e.g. PP, PVC, TPE etc.]
- PVC
- Current rating signal
- 3 A at +40°C
- Insulation resistance
- >=100M Ohm
- IP rating
- IP67
- Mating cycles
- >=100
- max. working temperature
- +80° C
- min. working temperature
- -30° C
- Pollution degree
- 3/2
- Recommended torque
- 0,4 Nm
- Sealing material
- FPM
- Shielding
- Unshielded
- Wire cross section
- 0,25 mm²
- Working voltage signal
- 30 V
