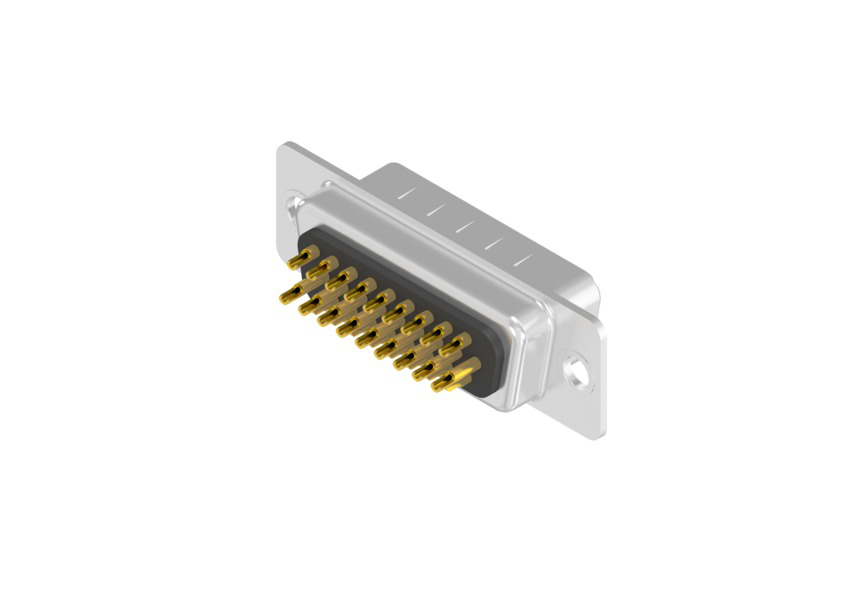

CONEC 301A10139X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
D-SUB High Density, 26-pos., Plug, Solder Cup stamped Contacts, Through hole, Quality class 3
CONEC 301A10139X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product CSA approved
- CSA File: LR 115000-1
- Product UL approved [UL File]
- E202784
Material Data
- Insulator color
- Black
- Insulator material
- PBT GF UL 94 V-0
- Mounting option material
- Copper Alloy
- Plating mounting option
- Nickel
- Plating signal contact (mating area)
- Gold over nickel
- Plating signal contact (termination area)
- Gold over nickel
- Shell plating
- Tin
- Signal contact material
- Copper alloy
Specifications
- Contact type
- Plug
- Hardware options termination side
- Through hole
- Product type
- D-SUB High Density
- Size/Number of positions
- 26-pos.
- Standard dielectric voltage
- IEC 60807-2
- Standard insertion / extraction force
- IEC 60807-2
- Standard mating cycles
- IEC 60807-2
- Standard working voltage
- IEC 664-1
- Termination signal [e.g. clamp, crimp, solder, SMT]
- Solder Cup stamped Contacts
Technical Data
- Current rating signal
- 3 A UL 2,5 A CSA
- Dielectric with standing voltage signal
- 1000 V
- Insertion force
- <84 N
- IP rating
- IP 20
- Mating cycles
- 50
- max. working temperature
- +125° C
- min. working temperature
- -55° C
- Quality class
- Quality class 3
- Working voltage signal
- 60 V
