Description

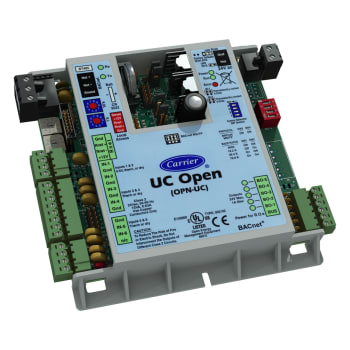

The UC Open controller provides auxiliary building control to interface with lighting, fans, pumps, and other HVAC equipment. The UC Open’s factory-engineered control programs provide simple building integration for commercial applications with 11 I/O point capability.i-Vu® UC Open
Carrier OPN-UC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- BACNet Support
- Advanced application controller (B-AAC), as defined in BACNet 135-2001 Annex L
- Battery
- 10-year Lithium CR2032 battery provides a minimum of 10,000 hours of trend data & time retention during power outages.
- Communication Ports
- EIA-485 port for BACnet MS/TP communications (9600 bps, 19.2 kbps, 38.4 kbps, and 76.8 kbps)
- Controller Addressing
- Rotary DIP switches set BACnet MS/TP MAC address of controller.
- Dimensions
- Length: 5-5/8” (14.3cm)
- Environmental Operating Range
- 0° to 140°F (-18° to 60°C), 10-90% relative humidity, non-condensing
- Inputs
- Configurable for thermistor or dry contact. Inputs 1 and 2 are also configurable for 0-5 VDC sensors. AIs have 12 bit A/D resolution.
- Listed By
- UL-916 (PAZX), cUL-916 (PAZX7)FCC Part 15-Subpart B- Class A, CE EN50082-1997
- Outputs
- Relay contacts rated at 1 A max @ 24 VAC/VDC, configured normally open.
- Power Requirements
- 24VAC +/- 10%, 50-60Hz
- Protection
- Incoming power and network connections are protected by non-replaceable internal solidstate polyswitches that reset themselves when the condition that causes a fault returns to normal. The power, network, input, and output connections are also protected against voltage transient and surge events.
- Real Time Clock
- Battery-backed real time clock keeps track of time in event of power failure.
- Status Indicators
- LED status indicators for communications, run status, error, and power.
