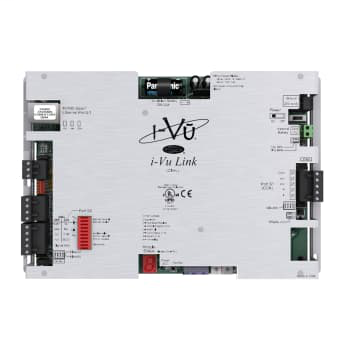

Carrier CIV-L
Description
Carrier CIV-L is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Battery
- 10-year Lithium CR123A battery provides a maximum of 720 hours of time retention during power outages. To conserve battery life, battery backup turns off after a specified number of days defined in the module driver.
- Communication Ports
- 10/100 BaseT Ethernet port for LAN, BACnet IP, and/or Modbus TCP/IP communications
- Controller Addressing
- Rotary DIP switches set address of Router.
- Environmental Operating Range
- 0° to 140°F (-18° to 60°C), 10-90% relative humidity, non-condensing
- Listed By
- UL-916 (Canadian Std C22.2 No. 205-M1983), CE, FCC Part 15-Subpart B-Class A
- Physical
- Rugged aluminum cover and removable screw terminal blocks.
- Power Requirements
- 24VAC +/- 10%, 50-60Hz
- Protection
- Incoming power and network connections are protected by non-replaceable internal solidstate polyswitches that reset themselves when the condition that causes a fault returns to normal. The power, network, input, and output connections are also protected against voltage transient and surge events.
- Real Time Clock
- Battery-backed real time clock
- Status Indicators
- LED status indicators for BACnet MS/TP communication, Ethernet port communication, and low battery status. 7-segment status display for running, error and power status.
