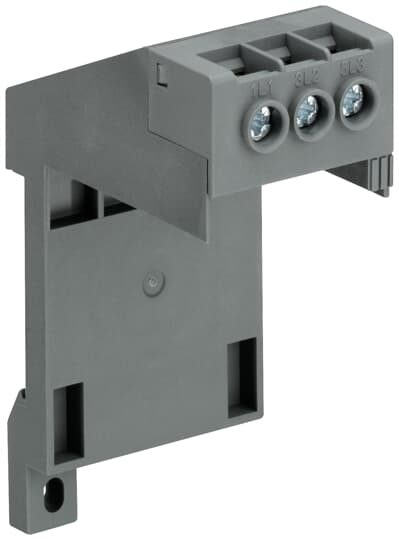

Carlon DB16
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Carlon DB16 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371392
- E-Number (Finland)
- 3707477
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC002498 - Accessories for low-voltage switch technology
- IDEA Granular Category Code (IGCC)
- 2988 >> Mounting kits
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 73 mm
- Product Net Height
- 50 mm
- Product Net Weight
- 0.032 kg
- Product Net Width
- 92 mm
Environmental
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 3g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85389099
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 1x 0.75 ... 2.5 mm²Rigid 1x 0.75 ... 4 mm²
- Degree of Protection
- IP20
- Mounting Position
- 1 ... 5
- Number of Poles
- 3
- Pollution Degree
- 3
- Rated Frequency (f)
- Main Circuit 50 HzMain Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kVMain Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-3 (Ie)
- 16 A
- Rated Operational Current (Ie)
- 16 A
- Rated Operational Voltage
- Main Circuit 690 V AC
- Recommended Screw Driver
- Pozidriv 2
- Standards
- CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508
- Suitable For
- T16
- Tightening Torque
- Main Circuit 1.1 ... 1.5 N·m
- Wire Stripping Length
- Main Circuit 12 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 18-10 AWGStranded 1x 18-10 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Main Circuit 13 in·lb
Williams Automation sells Carlon parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
