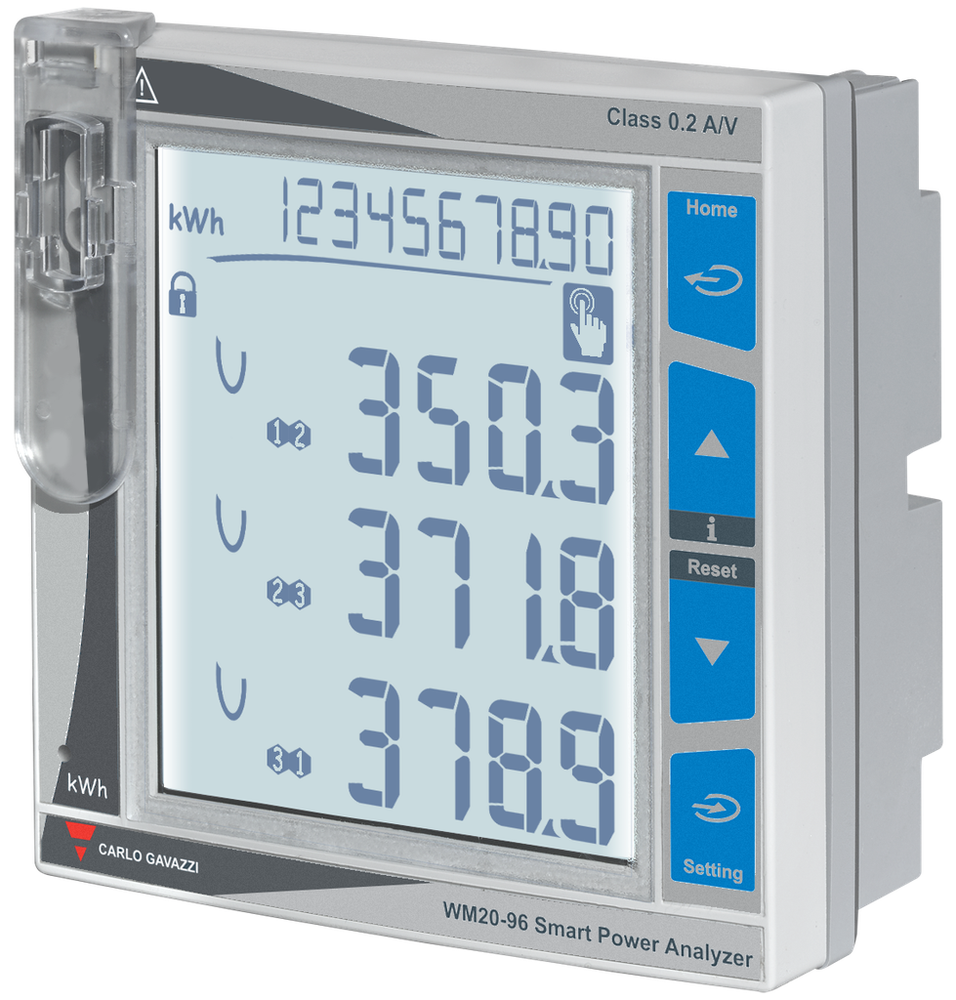

Carlo Gavazzi WM20AV63H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modular three-phase Power Analyzer - Modular three-phase Power Analyzer, Optional I/O and Communication modules (Modbus RTU, Modbus TCP/IP, BACnet, Profibus), Optical Port, auxiliary power supply. 220 to 400 V L-N, 380 to 690 V L-L. CT input: 5 (6) A
Carlo Gavazzi WM20AV63H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Approvals, marks, declarations
- CE (Europe) | cULus (North America)
- Calibrated
- Yes
- Communication port and protocol
- RS485 (Modbus RTU) | Ethernet (Modbus TCP/IP) | BACnet MS/TP | BACnet IP | Profibus DP-V0
- Configuration software
- UCS desktop (PC) | UCS Mobile (Android APP)
- Current inputs
- 5 A current transformers A
- Degree of protection (IP)
- IP65
- Degree of protection (NEMA)
- 4X
- Energy accuracy class
- Class 0.5S (IEC 62053-22)
- Energy metering
- Consumption and generation
- Energy type
- Effective power and blind power
- Frequency
- Min.50-Max.400
- 50Hz | 60Hz | Up to 400Hz
- Main Filter
- 1-Phase | 2-Phase | 3-Phase | 3-Phase wild-leg
- Max. current (Imax)
- 6
- Measuring type load profile
- No
- Model
- Measurement transformer
- Mounting method
- Front mounting
- Nominal current (In)
- 5
- Nominal voltage (Un) L-L
- Min.100-Max.230
- Nominal voltage (Un) N-L
- Min.57.7-Max.133
- Number of positions total (counter)
- 10
- Pole type
- Three conductor/four conductor
- Power supply
- Auxiliary power supply 120 V ac | Auxiliary power supply 220-240 Vac
- Product Depth
- 50
- Product Height
- 96
- Product Main Family
- Energy meters and analysers
- Product Main Family Group
- Panel mount with plug-in modules
- Product Width
- 96
- Pulse output
- Optic
- Rail mounting possible
- No
- Relay output
- Alarm | Pulse | Remote control
- Static output
- Alarm | Pulse | Remote control
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Type of meter
- Electronic
- Voltage inputs
- 2-wire, 115 V L-N | 2-wire, 120 V L-N | 3-wire, 110/220 V | 3-wire, 115/230 V | 3-wire, 120/240 V | 4-wire, 120/208 V | 4-wire, 127/220 V | 4-wire delta 120(208) / 240 V
- Wall mounting/direct mounting
- Yes
- With approval according to UL
- Yes
- With lock code
- Yes
