Description

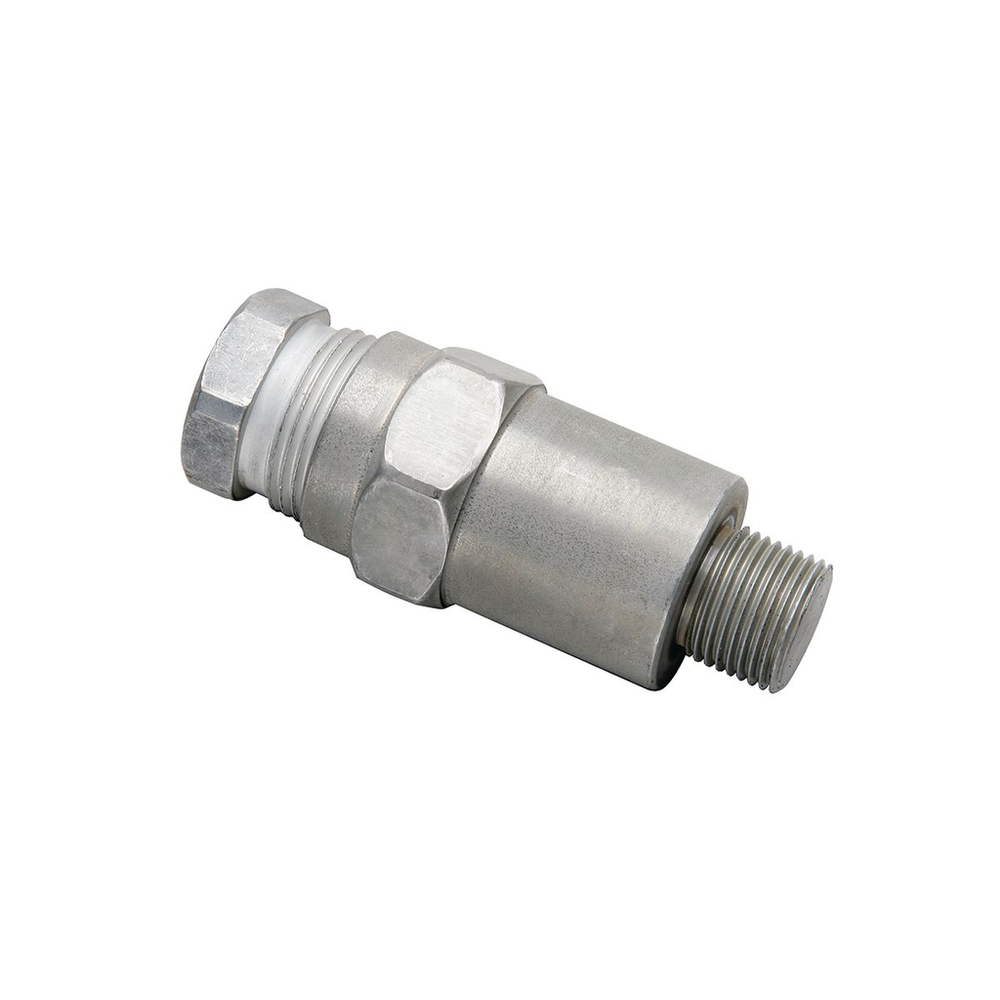

Burndy Z34NR is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Designed for use with Burndy mole
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.020 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810821220
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810821221
- Certification Agency
- Proposition 65
- Class Code
- B36
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
- Connector Type
- Nut
- Country of Origin
- US
- Description - Invoice
- 500 SOCKET & NUT ASSEMBL,3.69 IN L
- Dimension - B Length fraction
- 17/32 in
- Dimension - Cross Flats inch
- 1.50 in
- Dimension - Length Overall inch
- 3.69
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.69 in
- Freight Class Code
- 16027000
- Harmonization Code
- 7415338010
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 450 lb-in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.02 lb.
- Package - GTIN - Package
- 30781810821221
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810821220
- Package - Total Units
- 6 EA
- Package Weight
- 4.02 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810821229
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1910.280 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- Mechanical
- Special Features
- Features: Designed For Use With BURNDY Moles, With The Use Of The Proper Compression Cones, 14 Sizes Take A Range Of Cables From Number 6 To 1000 KCMIL, Their Compact Design Lends Them To Easy Effective Taping, Insulating Sleeves Are Available To Keep Taping To A Minimum, Uses Insulating Sleeve Z88C3429, Outlet Size: 6 AWG Stranded - 600 KCMIL, Stud Size: 5/8-18
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MOLE
- Sub Class Code
- B36BABF
- Type
- Z-NR
- UL Listed
- No
- Weight
- 1.2 lb.
- Width
- 1.69 in
