Description

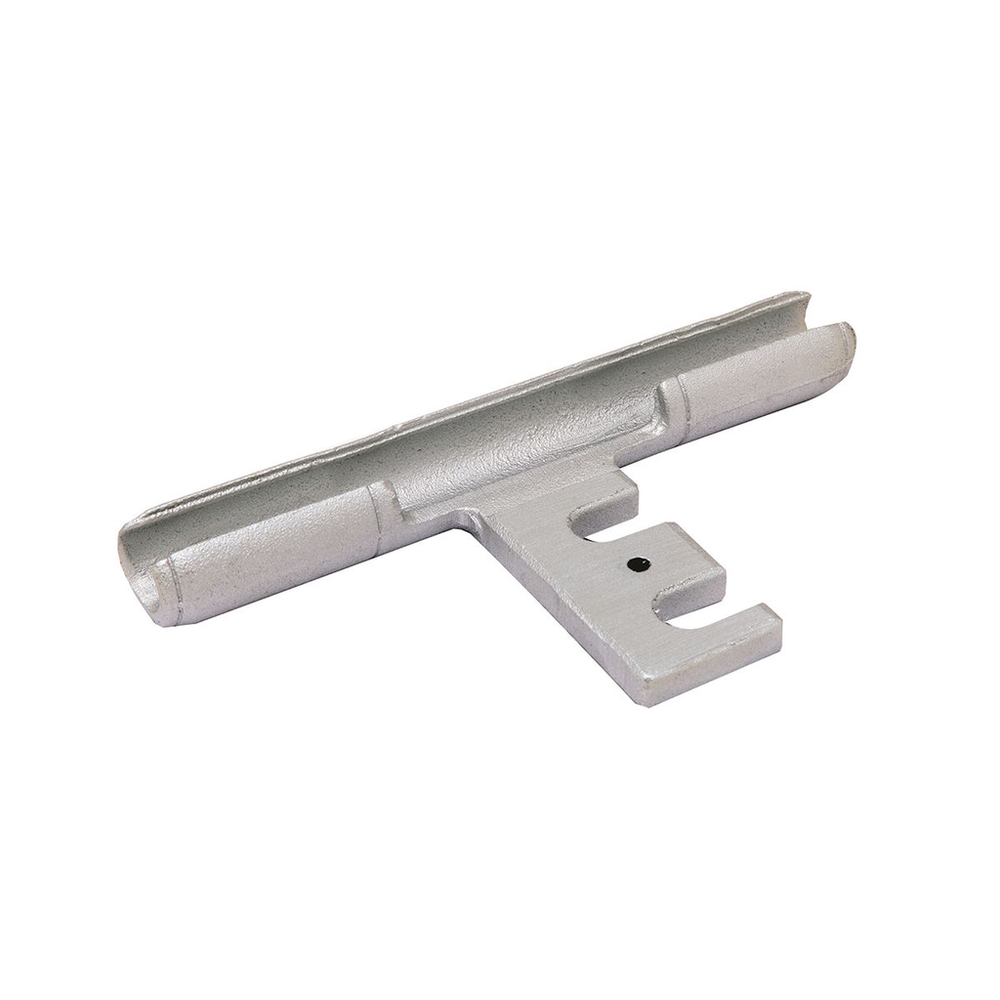

AL primary T-tap connector with slotted tap pad designed for easy disconnecting of tap conductor, For use with Types YKA-R-2N and YKA-A-2N, barrel Length: 2.62 IN LDIisconnectable T-Tap (With Pad); 9-1/2Length
Burndy YTA33R2N is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum, ACSR, 6201, 5005, Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013984
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013985
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil
- Conductor - ACSR Str Size Range
- 336.4 (26/7) Linnet kcmil-397.5 (18/1) Chickadee kcmil
- Conductor - AL Str Size
- 397 kcmil;400 kcmil
- Conductor - AL Str Size Range
- 397 kcmil-400 kcmil
- Conductor - Copper Str Size
- 400 kcmil
- Connector Type
- Tap
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 397 AL/CU/ACSR T SLOTTED
- Die Index
- M
- Dimension - B Length inch
- 2.62 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Height inch
- 4.97 in
- Dimension - Length Overall inch
- 9.42 in
- Dimension - L Length Overall mm
- 239 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.24 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 10 EA
- Package - Gross Weight per Pack
- 7.7 lb.
- Package - GTIN - Package
- 30781810013985
- Package Quantity
- 10 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Aluminum Primary T-Tap Connector With Slotted Tap Pad Designed For Easy Disconnecting Of Tap Conductor, Tap Pad Accommodates Compression Terminals Types YKA-R-2N And YKA-A-2N, And Has Positioning Socket For Proper Alignment, On Sizes Larger Than 336.4 KCMIL ACSR, The YTA-R-2N Run Element Has Twopiece Interlocking-Key With Lifting Eye That Simplifies Hotline Installations, Catalog Number Does Not Include Mating Terminal, Bolt Size: 1/2 IN, Compressed / Compact: No, Conductor Type: ACSR, 6201, 5005, Aluminum, Copper, Die Index: 317 Element A, Shape: T, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-M Die, (3), U317 Die, (4)
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B3YF
- Type
- YTA-R-2N, Disconnectable
- UL Listed
- No
- Width
- 1.24 in
