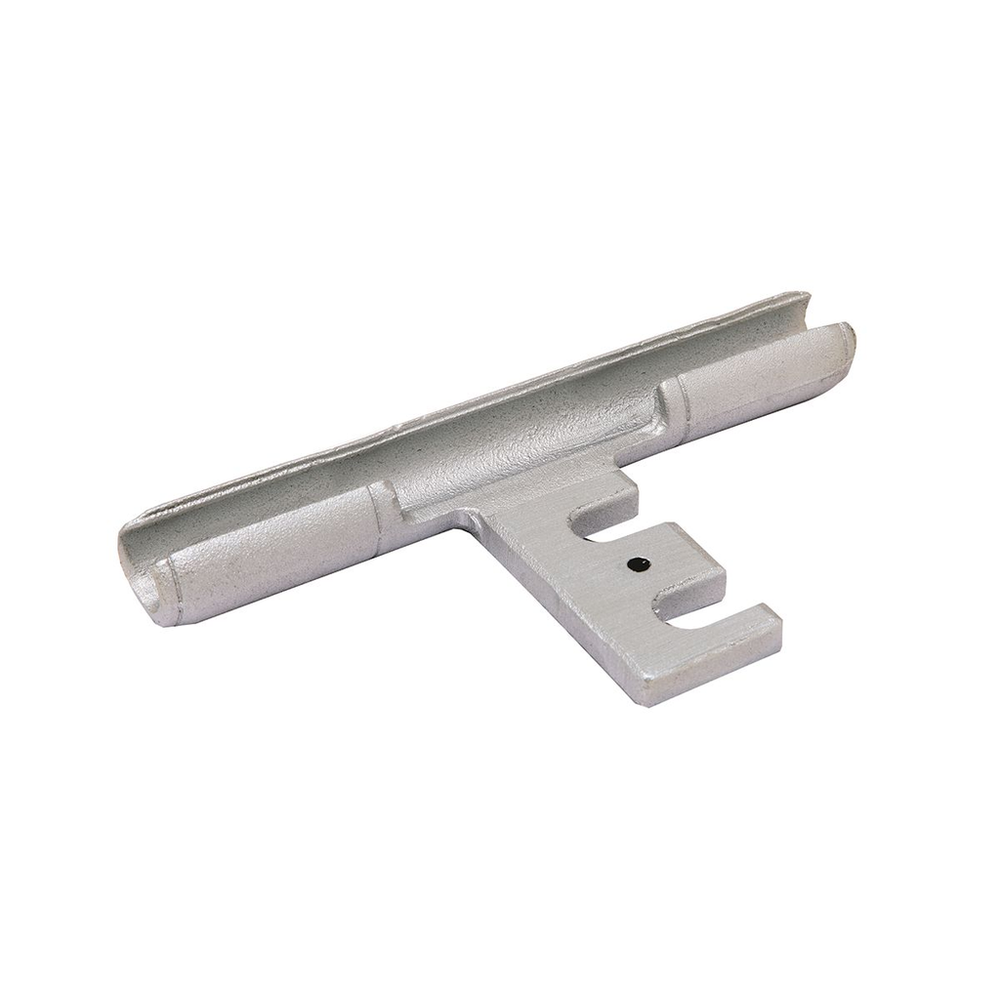

Burndy YTA2R2N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Burndy YTA2R2N is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013946
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013947
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Size
- 2 AWG;1 AWG
- Conductor - AL Str Size Range
- 2 AWG-1 AWG
- Conductor - Copper Str Size
- 2 AWG;1 AWG
- Conductor - Copper Str Size Range
- 2 AWG - 1 AWG
- Connector Type
- Tap
- Country of Origin
- US
- Die Index
- 243;BG
- Dimension - B Length inch
- 0.88 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Height inch
- 4.34 in
- Dimension - Length Overall inch
- 6.09 in
- Dimension - L Length Overall mm
- 155 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum
- Package - GTIN - Package
- 30781810013947
- Package Quantity
- 10 EA
- Package - Total Units
- 10 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Pad Configuration
- 2 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B30B3YF
- Type
- YTA Series
- UL Listed
- No
