Burndy YSV6CLBOX
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

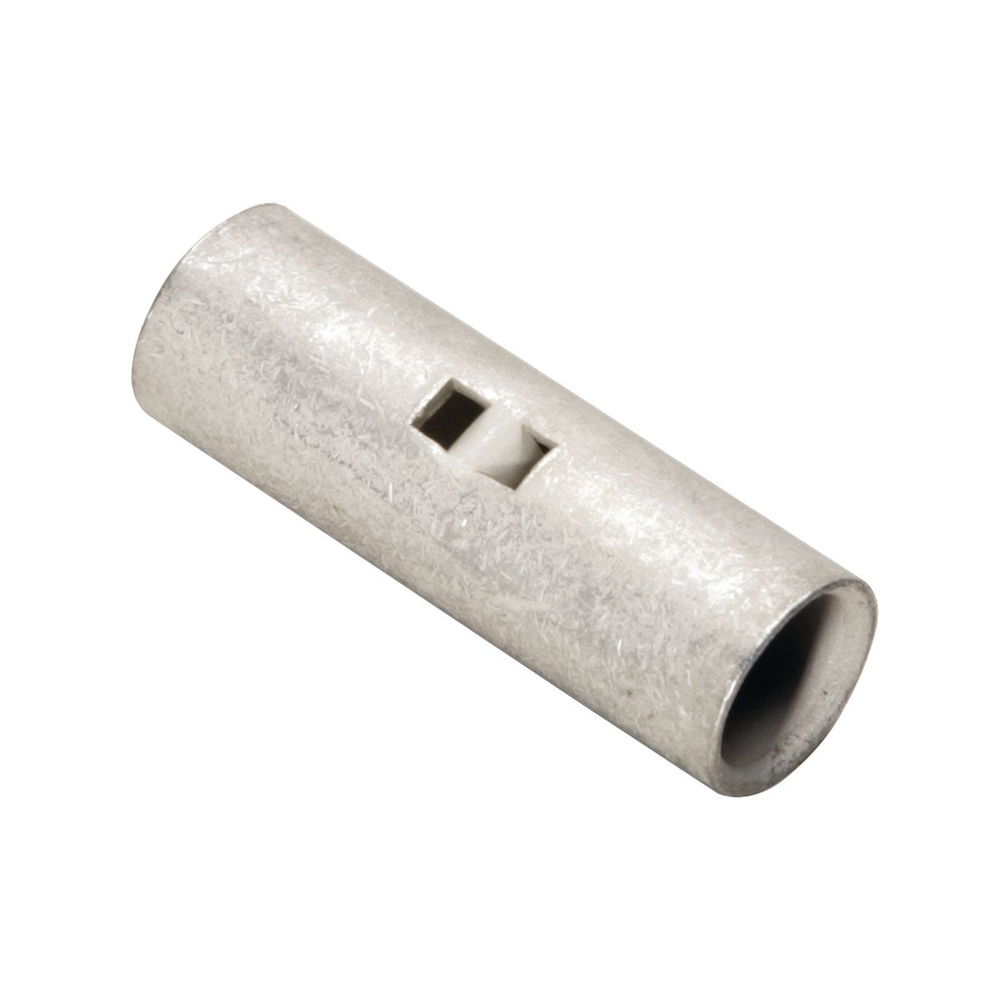

HYLINK™ Uninsulated Compression Butt Splice; Seamless Standard Barrel; Accommodates: #6 AWG Str/Sol, AN, Aircraft; Length: 1.12" ; 600 V MaxUninsulated Splice For 6 AWG
Burndy YSV6CLBOX is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aircraft, Light Duty Industrial And General Purpose Applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.200 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810534700
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810534701
- Class Code
- B57
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Aircraft Size
- AN 6
- Conductor - Copper Str Size
- 6 AWG
- Conductor Size
- 6 AWG
- Conductor Type
- CU C Str-Size;CU C Solid-Size;CU C Str Aircraft-Size
- Connector Type
- Seamless Butt Splice
- Country of Origin
- US
- Description - Invoice
- 6 STR/SOL/FX BUTTSPLICE
- Die Index
- 39
- Dimension - B Length fraction
- 1/2 in
- Dimension - B Length inch
- 0.50 in
- Dimension - Length Overall inch
- 1.12 in
- Dimension - L Length Overall mm
- 28 mm
- Dimension - Outside Diameter inch
- 0.31 in
- Dimension - Strip Length inch
- 5/8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.31 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 0.2 lb.
- Package - GTIN - Package
- 30781810534701
- Package Height
- 2.43 in
- Package Length
- 3.25 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810534700
- Package - Total Units
- 20 EA
- Package Weight
- 0.2 lb.
- Package Width
- 3 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: HYLINK Type YSV-L Seamless Splice Connector Is Used To Splice Type AN Aircraft Cables Plus Commercial Stranded And Solid AWG Conductors, Suitable For Aircraft, Light Duty Industrial And General Purpose Applications, Installation Tool: Ratchet: Y1MRTC, MR4C Tool, HYTOOL: Type AH, Aircraft, Cable - MY28 Tool, All Others: MY29-3, MY29-11 Tool, 1 Crimp, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: H35, Y35BH, Y39, Y39BH Tool, UV6L Die Nest, Y34PLA Die Indentor, Y35P3 Indentor Adaptor, Conductor Type: Commercial/Aircraft Stranded Copper, Insulation Support: No, Package: Box, Wire Strip Length: 1/2 IN
- Standard Package Quantity
- 20
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLINK
- Sub Class Code
- B57BKFF
- Trade Name
- HYLINK™
- Type
- Splice
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.31 in
