Burndy YAV12G3BOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

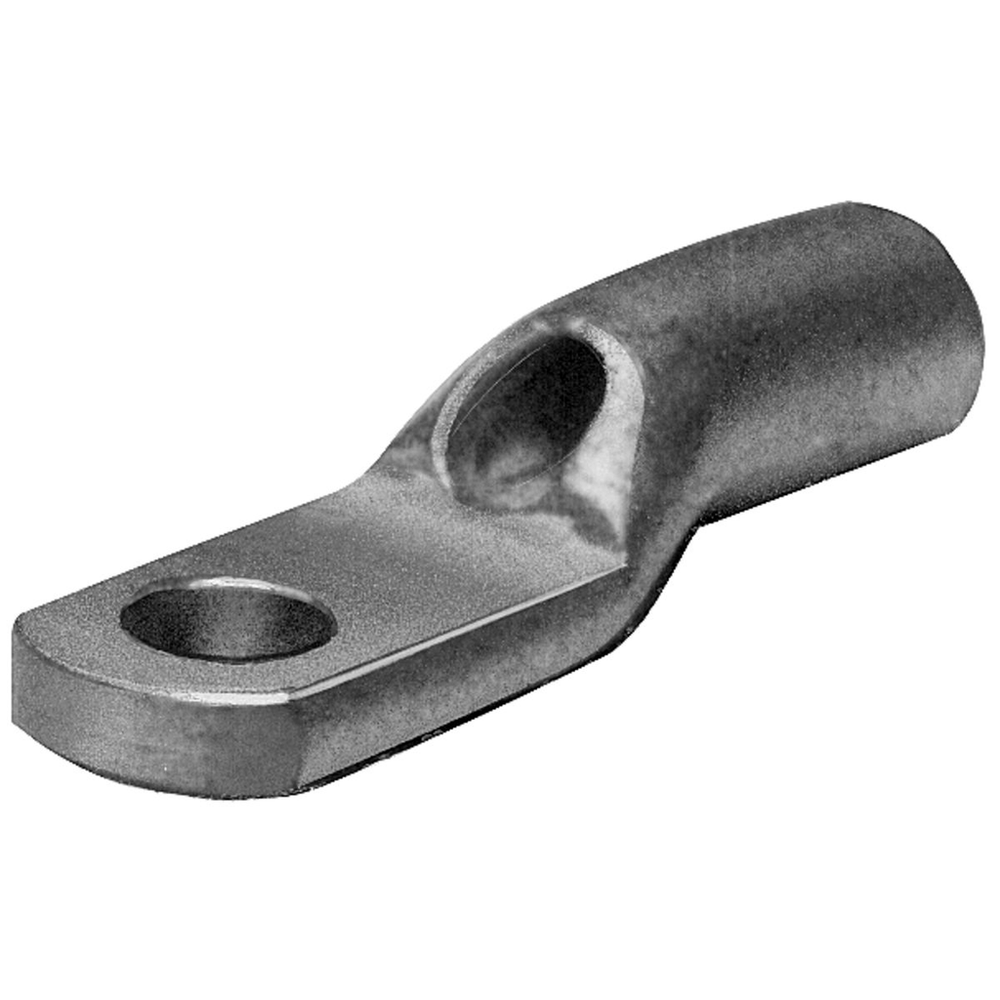

Uninsulated Ring Terminal For 14 - 12 AWG.Uninsulated Ring Terminal For 14 - 12 AWG
Burndy YAV12G3BOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 1200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810533307
- Carton - Total Units
- 1200 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810533308
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-12 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG
- Conductor - Copper Str Size Range
- 14 AWG - 12 AWG
- Conductor Size
- 14 - 12 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Dimension - B Length inch
- 0.27 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - Length Overall inch
- 0.97 in
- Dimension - L Length Overall mm
- 25 mm
- Dimension - N inch
- 0.25 in
- Dimension - Outside Diameter inch
- 0.16 in
- Dimension - Pad Width inch
- 0.36 in
- Dimension - Strip Length inch
- 9/32 in
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.33 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810533308
- Package Quantity
- 100 EA
- Package - Total Units
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810533306
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 912.600 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B57BK5F
- Trade Name
- HYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
