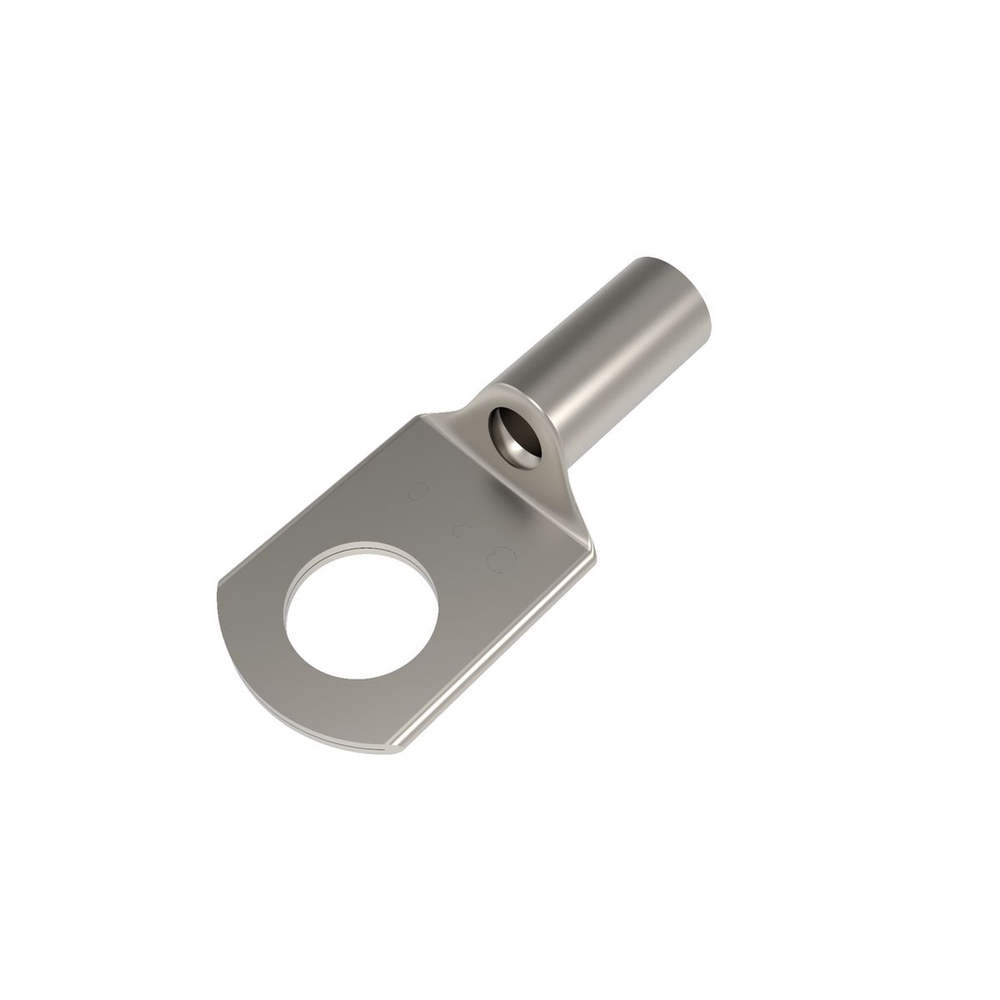

Burndy YAV10T3BOX

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 600
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810541708
• Carton - Total Units
  • 600 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810541709
• Case - Total Units
  • 600 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B57
• Conductor - Copper Solid Size
  • 12 AWG;11 AWG;10 AWG
• Conductor - Copper Solid Size Range
  • 12 AWG-10 AWG
• Conductor - Copper Str Size
  • 14 AWG;12 AWG;10 AWG
• Conductor - Copper Str Size Range
  • 14 AWG-10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING-12- 10 AWG - UNIN
• Dimension - B Length fraction
  • 16/41 in
• Dimension - B Length inch
  • 0.39 in
• Dimension - Bolt Size fraction
  • 1/4
• Dimension - D inch
  • 0.57 in
• Dimension - Length Overall inch
  • 1.1 in
• Dimension - L Length Overall mm
  • 28 mm
• Dimension - N inch
  • 0.23 in
• Dimension - Outside Diameter inch
  • 0.21 in
• Dimension - Pad Width inch
  • 0.47 in
• Dimension - Strip Length inch
  • 7/16 in
• Dimension - Stud Size inch
  • 1/4 in
• Dimension - Z inch
  • 0.32 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.45 in
• Feature - Barrel Style
  • Chamfered
• Feature - Barrel Type
  • Standard
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 10 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 50 EA
• Package - Gross Weight per Pack
  • 0.35 lb.
• Package - GTIN - Package
  • 30781810541709
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810541708
• Package - Total Units
  • 50 EA
• Package Weight
  • 0.35 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810541707
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1051.320 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Angle
  • Straight
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin - Electro Plated
• Product Type
  • TERMINAL
• Special Features
  • Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And Excellent Ductility For Crimping, Seamless Tubular Crimp Barrel Design: No Seams To Split Resulting In A Very High Quality Electrical Connection, Also Can Be Used On Solid Conductor, Double Thick Tongue: Provides A Very Strong Terminal Tongue, Produced From Tubular Copper: Extra Copper Material Assures The Compression Connector Will Operate Cooler Than The Conductors It Connects, Internally Bevelled Barrel: Provides Easy Cable Entry, Especially For Flexible Conductors, Inspection Hole: Provides Easy Visual Check For Proper Conductor Insertion, Electro-Tin Plated: Provides Long Lasting Durable Corrosion Resistance, Nickel Plating Available, Add NK Suffix: Nickel Plated HYLUG Provide High Temperature Applications Up To 650 DEG F Continuous Service And 750 DEG F Intermittent Service, The YAV-HYLUG Terminals Meet The Requirements Of SAE-AS7928, Package: Box, Finish: Electro-Tin Plated, Wire Shroud: No, Installation Tool: Non-Ratchet: Y10D, Y1022 Tool, Ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 Tool With N10HT, N10HT-24 Die, Conductor Type: Solid, Commercial/Military Stranded Copper, Die Index: 2 SCRIBE, Tongue Angle: Straight, Wire Strip Length: 7/16 IN
• Standard
  • UL467
• Standard Package Quantity
  • 50
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BK5F
• Trade Name
  • HYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Width
  • 0.45 in
