Description

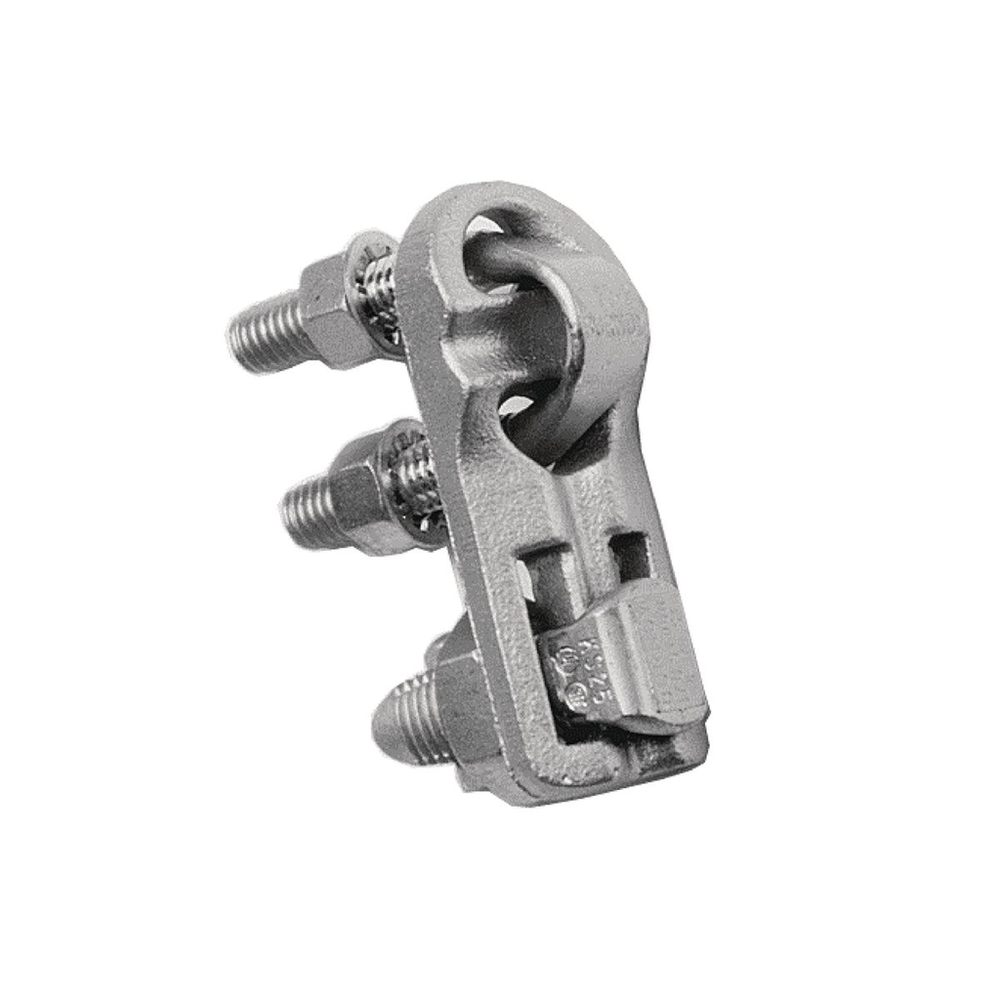

Copper V Bolt T-Connector , Cable to Cable, 1/0-4/0 AWG(Str)(Run), 1/0-4/0 AWG(Str)(Tap), 230kV.Copper V Bolt T-Connector, Cable to Cable, 1/0-4/0 AWG(Str)(Run), 1/0-4/0 AWG(Str)(Tap), 230kV
Burndy VT2828 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810005583
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810005584
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Cable
- Conductor - Copper Solid Run
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Run Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Solid Tap
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Str Run
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Run Range
- 1/0 -4/0 AWG
- Conductor - Copper Str Tap
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Tap Range
- 1/0 -4/0 AWG
- Conductor Type
- CU C Str-Run;CU C Str-Tap
- Connector Type
- T-Connector
- Country of Origin
- US
- Description - Invoice
- 1/0-4/0 TO 1/0-4/0 CU TE
- Dimension - Height fraction
- 1-5/8 in
- Dimension - Height inch
- 0.38 in
- Dimension - Length Overall inch
- 2.94 in
- Dimension - L Length Overall mm
- 75 mm
- Dimension - Width fraction
- 1-11/16 in
- Dimension - Width inch
- 0.31 in
- Dimension - Width mm
- 8 mm
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 1.69 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 1.1 LBS/in
- Installation Torque Recommended Run in-lb
- 250 LBS/in
- Installation Torque Recommended Tap in-lb
- 250 LBS/in
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 7.56 lb.
- Package - GTIN - Package
- 30781810005584
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 12 EA
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810005583
- Package - Total Units
- 12 EA
- Package Weight
- 7.56 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy T-Connector For Cable Run, Cable Tap, V-Bolt Clamping Elements Accommodate Large Range Of Cable And Are Particularly Suited For Extra Flexible Cable, One-Wrench Installation, Length: 3-1/16 IN, Installation Torque: 250 IN-LB For Run And Tap, Width: 1-11/16 IN, Height: 1-5/8 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- VARITAP
- Sub Class Code
- B21B03F
- Trade Name
- VARITAP™
- Type
- Bolted Tees
- UL Listed
- Yes
- Width
- 1.69 in
