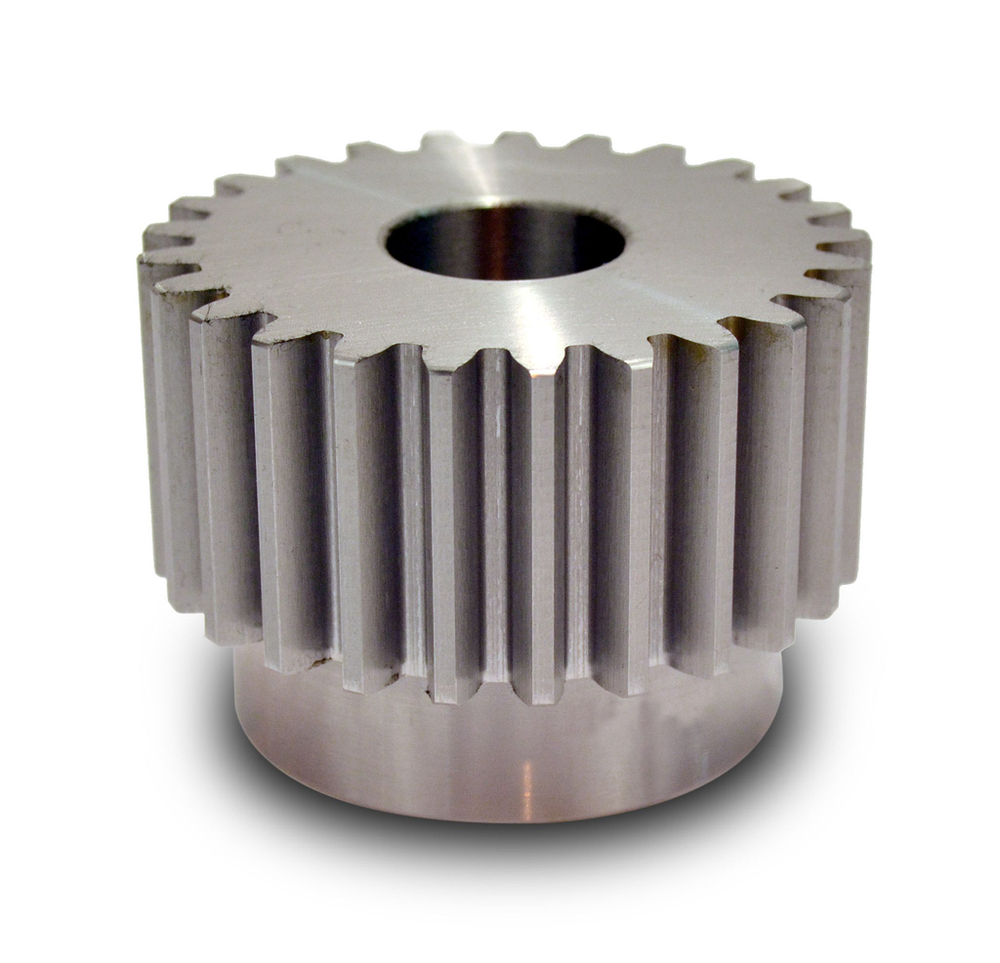

Boston Gear YF25 1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Boston Gear spur gears are designed to transmit motion and power between parallel shafts. The different styles offered include spur, gear rack, pinion wire, stem pinions, and internal gears, and most come with a selection of bore diameters, keyways, and setscrews to accommodate a wide variety of application requirements. They are available in plastic, non-metallic, brass, steel, and cast iron and are manufactured in a variety of styles, including plain, web, web with lightening holes, and web with spokes. Many are available with or without hubs.Boston Gear manufactures both 14 1/2° and 20° PA, involute, full-depth system gears. While 20° PA is generally recognized as having a higher load-carrying capacity, 14 1/2° PA gears are used extensively because of lower backlash and smoother, quieter operation. Just ask your CSR which is best for you. And remember that spur gears and rack are available via our Guaranteed Same Day Shipment Program.Spur Gear, 10 DP, 20 PA, 25 Teeth, Steel
Boston Gear YF25 1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 1.000 in
- Diametral Pitch (DP)
- 10 DP
- Face Width [Imperial]
- 1.250 in
- Hub Diameter [Imperial]
- 2.11 in
- Keyway
- With Keyway
- Material
- Steel
- Number of Teeth
- 25
- Outside Diameter [Imperial]
- 2.700 in
- Pitch Diameter [Imperial]
- 2.500 in
- Pressure Angle
- 20 Degrees
- Rated Torque
- 459 @ 1200 RPM Max
- Setscrew/Other
- With Setscrew
- Weight [Imperial]
- 2.001 lbs
