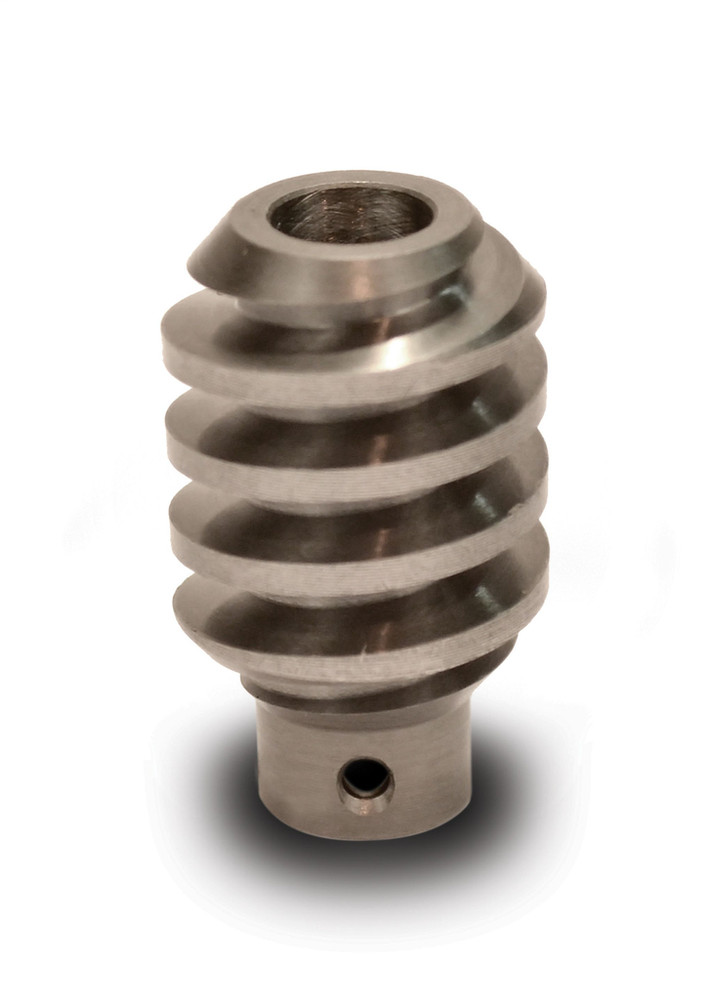

Boston Gear HDVH-1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
When used with worm gears, Boston Gear worms provide an effective answer for power transmission applications requiring high ratio speed reduction in a limited space using right angle (90°), non-intersecting shafts. Manufactured from acetal, nylon, and hardened and unhardened steel, they offer the smoothest, quietest form of gearing when properly applied.Because the efficiency of a worm gear drive depends on the lead angle and number of starts on the worm, it's important to keep the ratio as low as possible. It is equally important that worms and worm gears used together must have the same diametrical pitch and threads.Worm, 16 DP, 14.5 PA, .625 PD, RH, Steel/Hardened
Boston Gear HDVH-1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 0.313 in
- Diametral Pitch (DP)
- 16 DP
- Face (Thread Length) [Imperial]
- 1.000 in
- Hand
- Right Hand
- Hub Diameter [Imperial]
- 0.43 in
- Keyway
- No Keyway
- Material
- Steel, Hard-Polished Thread
- Mating Gear
- 16 DP
- Number of Threads
- Double Thread
- Outside Diameter [Imperial]
- 0.750 in
- Pitch Diameter [Imperial]
- 0.625 in
- Pressure Angle
- 14.5 Degrees
- Setscrew/Other
- 0.0938 Hole Only
- Straight/Spiral Tooth
- Spiral Tooth
- Weight [Imperial]
- 0.121 lbs
