Boston Gear HB612R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

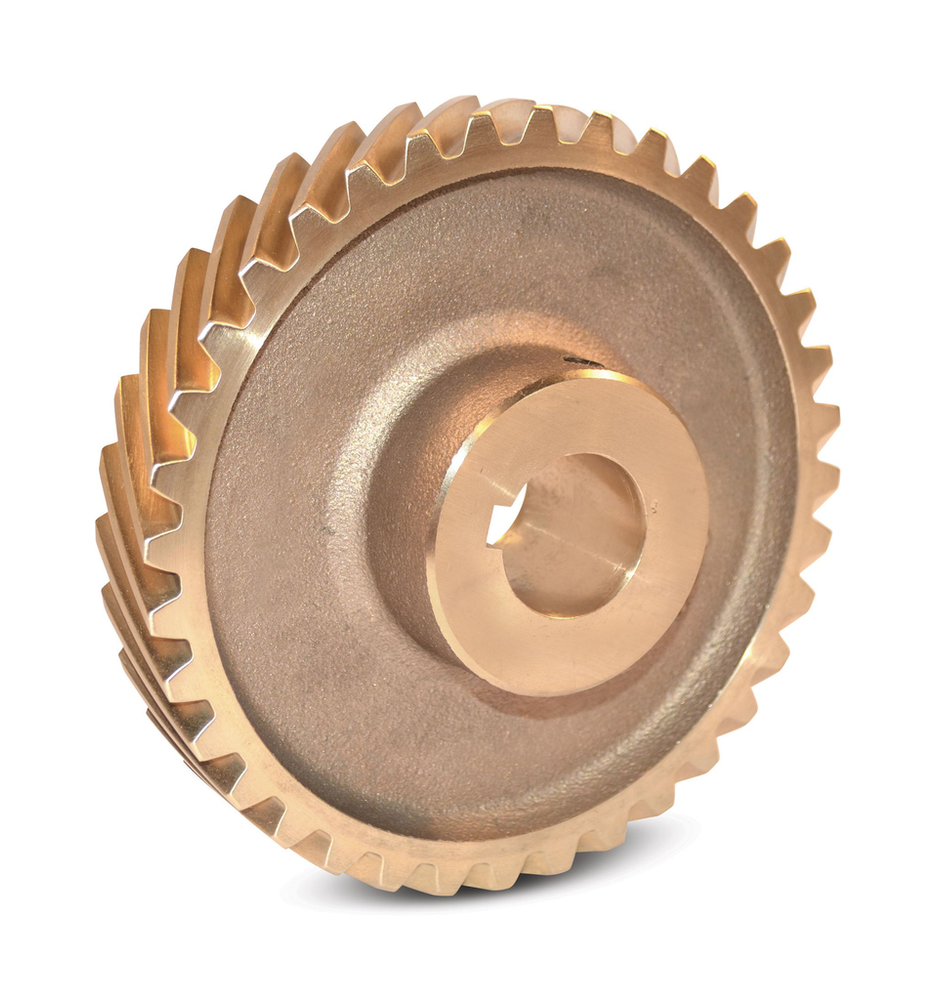

Boston Gear's stock helical gears are manufactured in both right- and left-handed configurations with an industry standard 45° helix angle to transmit motion and power between non-intersecting shafts that are parallel or at 90° to each other. For parallel shaft operation, helical gears with opposite-hand helix angles are required. For shafts at 90°, a same-hand helix angles must be used.For parallel shaft applications, the overlapping tooth contact of our helical gears provides smoother, quieter operation and higher horsepower capacity than spur gears of comparable size. For 90° shaft applications, the tooth-contact area of helical gears is very small, making it ideal for applications requiring only limited load carrying capacity.Helical Gear, 45 Helix, 6 DP, 14.5 PA, 12 Teeth, RH
Boston Gear HB612R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 1.250 in
- Face Width [Imperial]
- 1.000 in
- Hand
- Right Hand
- Helix Angle
- 45 Degrees
- Keyway
- 1/4 X 1/8 in
- Material
- Bronze
- Number of Teeth
- 12
- Outside Diameter [Imperial]
- 2.240 in
- Pitch Diameter [Imperial]
- 2.000 in
- Setscrew/Other
- Setscrew 90° to keyway
- Transverse Diametral Pitch
- 6 DP
- Weight [Imperial]
- 1.001 lbs
