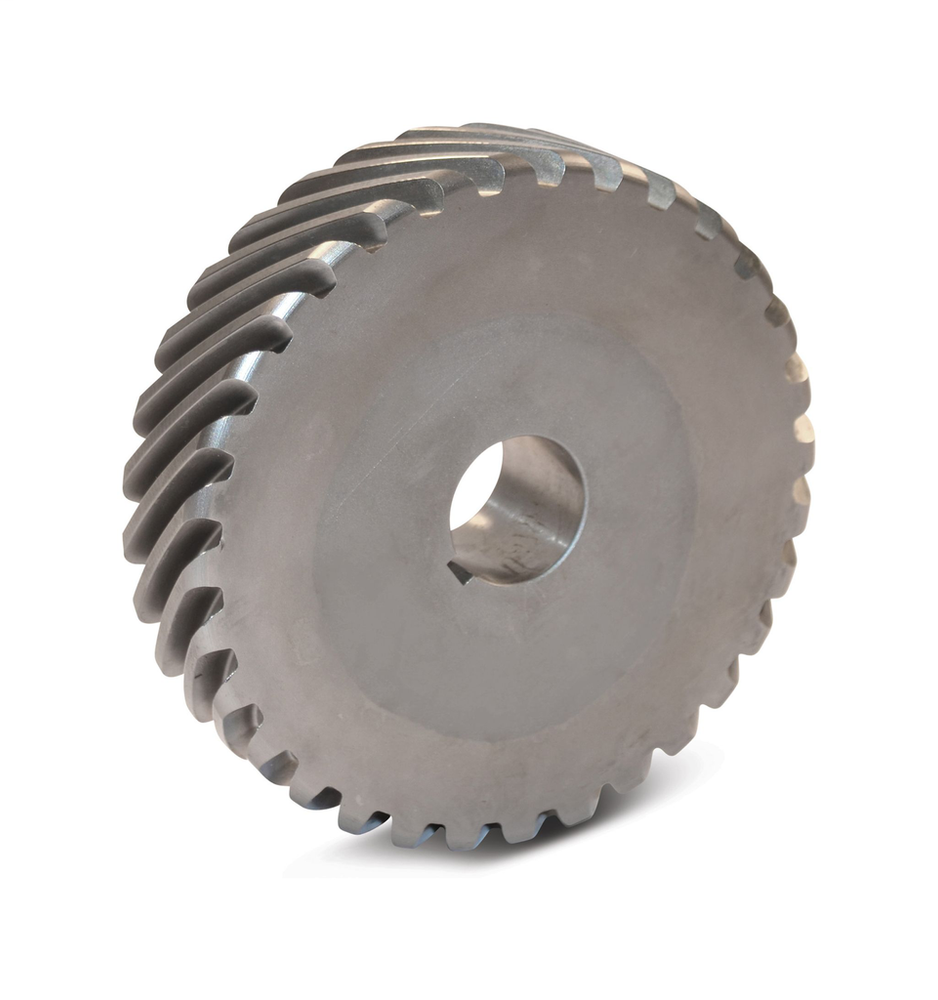

Boston Gear H820L
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Boston Gear's stock helical gears are manufactured in both right- and left-handed configurations with an industry standard 45° helix angle to transmit motion and power between non-intersecting shafts that are parallel or at 90° to each other. For parallel shaft operation, helical gears with opposite-hand helix angles are required. For shafts at 90°, a same-hand helix angles must be used.For parallel shaft applications, the overlapping tooth contact of our helical gears provides smoother, quieter operation and higher horsepower capacity than spur gears of comparable size. For 90° shaft applications, the tooth-contact area of helical gears is very small, making it ideal for applications requiring only limited load carrying capacity.Helical Gear, 45 Helix, 8 DP, 14.5 PA, 20 Teeth, LH
Boston Gear H820L is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 0.875 in
- Face Width [Imperial]
- 1.000 in
- Hand
- Left Hand
- Helix Angle
- 45 Degrees
- Keyway
- 3/16 X 3/32 in
- Material
- Steel, Hardened Teeth
- Number of Teeth
- 20
- Outside Diameter [Imperial]
- 2.680 in
- Pitch Diameter [Imperial]
- 2.500 in
- Setscrew/Other
- No Setscrew
- Transverse Diametral Pitch
- 8 DP
- Weight [Imperial]
- 1.101 lbs
