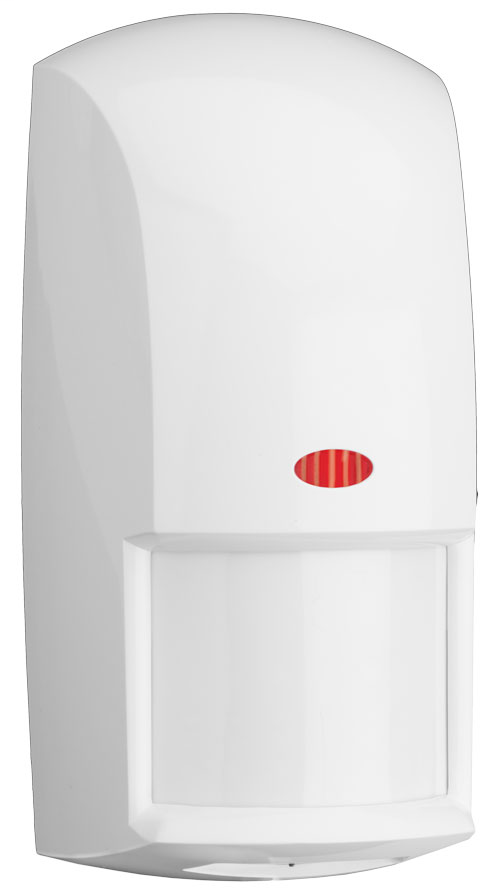

Bosch OD850-F1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Provides PIR and mircowave, 15 m x 15 m (50 ft x 50 ft) coverage for use outdoors or in harsh environments with two sensitivity levels, draft and insect immunity. Operates at 10.525 GHz. For use in the Americas and the Asia/Pacific Region.Motion detector, outdoor, 50ft (15m)
Bosch OD850-F1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Country of Origin
- China
- Gross Weight (Kg)
- 0.42
- Gross Weight (Lbs)
- 0.9259499999999999
- Height (In)
- 2.75591
- Height (M)
- 0.07
- Length (In)
- 7.16536
- Length (M)
- 0.182
- Material
- 4.998.155.081
- Net Weight (Kg)
- 0.37
- Net Weight (Lbs)
- 0.81572
- Width (In)
- 3.30709
- Width (M)
- 0.084
Technical Specifications
- Alarm
- Do not use with capacitive or inductive loads. Form A: Normally-closed contact opens on alarm. Form C: Timed relay contact alternates state on alarm and follows an installer programmable timer. Contact Rating: 3 W, 125 mA maximum, 25 VDC maximum for DC resistive loads; and protected by a 4.7 Ω, 1/2 W resistor in the common C leg of the relay.
- Current
- 62 mA maximum
- Dimensions
- 16.5 cm x 8.25 cm x 6.35 cm (6.5 in. x 3.25 in. x 2.5 in.)
- Input Power
- 10 VDC to 15 VDC at 22 mA standby.
- IP Rating
- 54
- Material
- Polycarbonate
- OD850-F2
- Complies with Environmental Class III (EN50130-5)
- Properties
- Weather and vandal resistant
- Relative Humidity
- 0% to 95% non-condensing
- Tamper
- Normally-closed (with cover on) contacts rated 125 mA maximum, 25 VDC maximum
- Temperature (Operating)
- -35°C to +54°C (-31°F to +130°F)
- Weight
- 1.4 oz (40 g)
