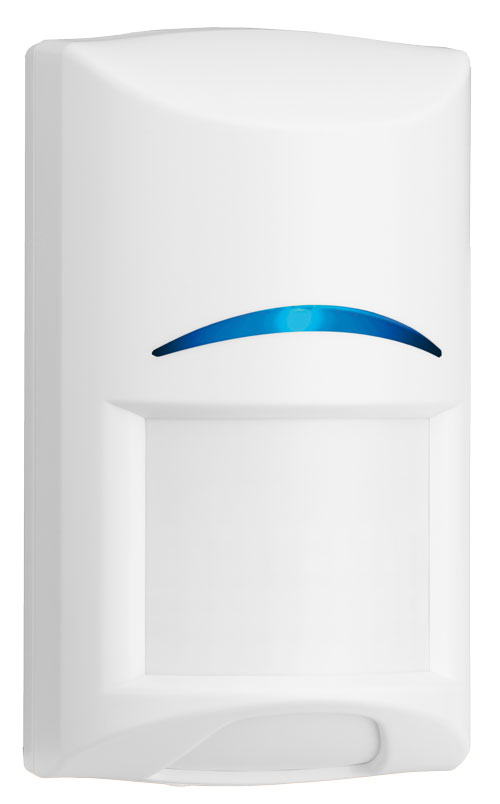

Bosch ISC-BPR2-WP12
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Bosch ISC-BPR2-WP12 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Country of Origin
- China
- Gross Weight (Kg)
- 0.106
- Gross Weight (Lbs)
- 0.23369
- Height (In)
- 1.8897700000000002
- Height (M)
- 0.048
- Length (In)
- 4.33071
- Length (M)
- 0.11
- Material
- F.01U.134.143
- Net Weight (Kg)
- 0.09
- Net Weight (Lbs)
- 0.19842
- Width (In)
- 2.44095
- Width (M)
- 0.062
Technical Specifications
- Color
- white
- Current (standby/alarm)
- 10 mA at 12 VDC
- Dimensions
- 105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
- Environment
- Complies with EN50130-5 Class II
- Material
- High-impact ABS plastic
- Pet Immunity1
- One or two pets up to 20 kg (45 lb) or numerous rodents.
- Radio Frequency Interference (RFI) Immunity
- No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
- Relative Humidity
- 0 to 95%, non-condensing For UL Listed product installations, 0 to 85%, non-condensing
- Relay
- Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
- Tamper
- Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.
- Temperature (operating)
- -30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
- Voltage (operating)
- 9 VDC to 15 VDC
