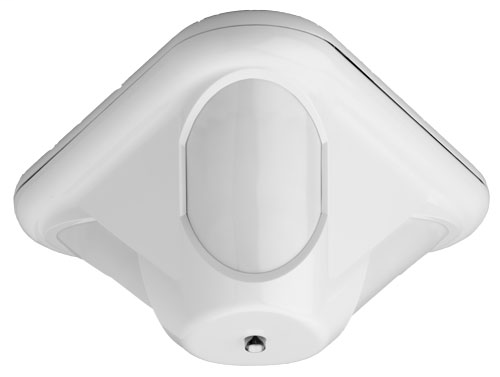

Bosch DS939
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Bosch DS939 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Country of Origin
- China
- Gross Weight (Kg)
- 0.47
- Gross Weight (Lbs)
- 1.03618
- Height (In)
- 4.173229999999999
- Height (M)
- 0.106
- Length (In)
- 8.4252
- Length (M)
- 0.214
- Material
- 4.998.800.703
- Net Weight (Kg)
- 0.42
- Net Weight (Lbs)
- 0.9259499999999999
- Width (In)
- 7.007879999999999
- Width (M)
- 0.178
Technical Specifications
- Alarm Relay
- Silent-operating form C relay. Contacts rated 125 mA, 28 VDC, 3 W maximum for DC resistive loads.
- Current
- 12 mA standby; 39 mA in alarm with LEDs enabled
- Dimensions
- 8.9 cm x 17.8 cm (3.5 in. x 7 in.)
- Height Range
- 3 m to 7.6 m (8 ft to 25 ft) recommended
- Internal Pointability
- Coverage is adjustable ±10° horizontally, +2° to -18° vertically.
- Location
- Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box.
- Operating Temperature
- -40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
- Properties
- Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring.
- Sensitivity
- Low/High gain settings
- Tamper
- Normally-closed (with cover in place) tamper switch. A wall (base) tamper is included. Contacts rated at 28 VDC, 125 mA, 3 W maximum.
- Voltage
- 9 VDC to 15 VDC
