Description

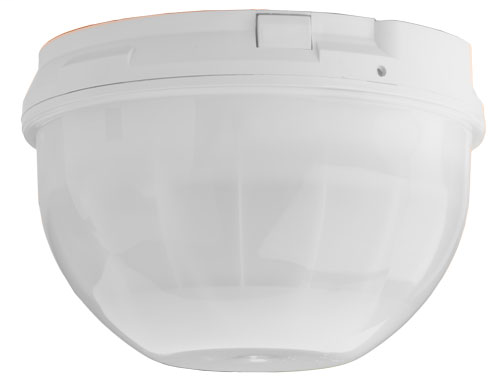

Bosch DS9360 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Country of Origin
- China
- Gross Weight (Kg)
- 0.36
- Gross Weight (Lbs)
- 0.79367
- Height (In)
- 4.76378
- Height (M)
- 0.121
- Length (In)
- 6.4567
- Length (M)
- 0.164
- Material
- 4.998.800.002
- Net Weight (Kg)
- 0.32
- Net Weight (Lbs)
- 0.70548
- Width (In)
- 5.59056
- Width (M)
- 0.142
Technical Specifications
- Alarm
- Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads.
- Current
- 18 mA standby; 75 mA in alarm
- Design
- Modular high impact ABS electronic head and mounting/wiring base design with rugged polyethylene dome provides easy access to field setup switches.
- Dimensions
- 8.5 cm x 13.3 cm (3.5 in. x 5.25 in.)
- Height Range
- 2.4 m to 5.5 m (8 ft to 18 ft) recommended
- Location
- Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box.
- Material
- High impact ABS plastic enclosure
- Operating Temperature
- -40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120° F)
- Radio Frequency Interference (RFI) Immunity
- No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
- Tamper
- Normally-closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum.
- Voltage
- 6 VDC to 15 VDC
