Description

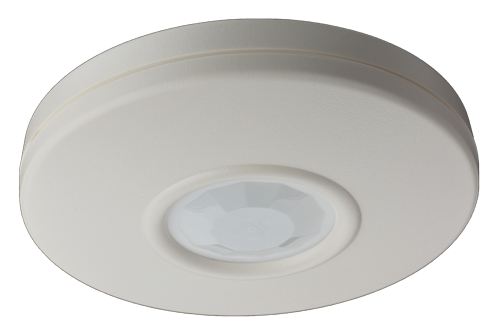

Bosch DS936 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Country of Origin
- China
- Gross Weight (Kg)
- 0.18
- Gross Weight (Lbs)
- 0.39684
- Height (In)
- 1.57481
- Height (M)
- 0.04
- Length (In)
- 4.72441
- Length (M)
- 0.12
- Material
- 4.998.800.224
- Net Weight (Kg)
- 0.16
- Net Weight (Lbs)
- 0.35274
- Width (In)
- 4.64567
- Width (M)
- 0.118
Technical Specifications
- Alarm
- Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
- Color
- White
- Current
- 20 mA at 12 VDC
- Dimensions
- 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
- Height range
- 2 m to 3.6 m (7 ft to 12 ft)
- Location
- Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box
- Material
- High impact ABS plastic enclosure
- Pattern pointability
- ±15° rotational
- Radio Frequency Interference (RFI) Immunity
- No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
- Tamper
- Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
- Temperature (operating)
- -29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
- Voltage
- 10 VDC to 15 VDC
