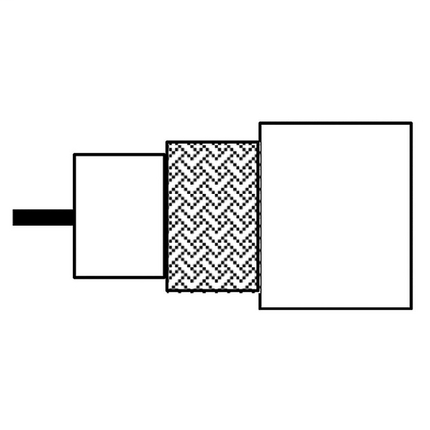

Belden URM76NH.01100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Belden URM76NH.01100 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2005-11-04
Construction and Dimensions
- Min Elongation at Breakof Jacket
- 125 %
- Min Tensile Strength of Jacket
- 9 MPa
Electrical Characteristics
- High Freq Table Note
- In each frequency band, 3 peak values up to 4 dB lower are allowed
Flammability, LS0H, Toxicity Testing
- Amount of Halogen acc. to IEC 60754-1 & EN50267-1
- Zero
- ISO/IEC Flammability
- IEC 60332-1-2
History
- Update and Revision
- Revision Number: 0.152 Revision Date: 12-11-2019
Mechanical Characteristics
- Crush Resistance
- Max. 1% (load of 700N) N
- Min Bend Radius (W/o Pulling Strength)
- 25 mm
Physical Characteristics (Overall)
- Conductor Count
- 1
- OuterJacket1, Table Note
- According to European Standard HD 624
Product Overview
- Environmental Space
- Indoor - Euroclass Eca
- Suitable Applications
- Coaxial communication cable based on BS2316
Specifications
- Color
- Black
- Length
- 100 m
Standards
- CENELEC Compliance
- EN 50289
- CPR Euroclass
- Eca
- Other Specification
- BS2316
- Series Type
- UR Series
Temperature Range
- Installation Temp Range
- -5°C To +50°C
- Operating Temp Range
- -15°C To +70°C
- Storage Temp Range
- -15°C To +70°C
