Belden RVAFPUBK-B24
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

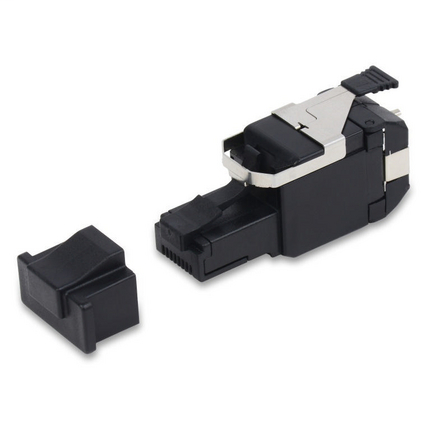

REVConnect 10GX UTP Plugs are available in single packs and 24 bulk packs.RVAFPUBK-B24 - REVConnect 10GX UTP Plugs - REVConnect 10GX UTP Field Mount Plug, Black
Belden RVAFPUBK-B24 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- EU Directive 2002/95/EC (RoHS)
- Yes
- EU RoHS Compliance Date (yyyy-mm-dd)
- 2006-07-01
- MII Order #39 (China RoHS)
- EUP 50
Electrical Characteristics
- Current Rating
- 1.500 A
- Dielectric Strength
- 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
- Insulation Resistance
- 500 M-Ohm Minimum
- Max Contact Resistance
- 20 mOhm
- Termination Resistance
- 2.5 mOhm
Flammability, LS0H, Toxicity Testing
- Safety Listing
- c(UL)us Listed
- UL Flammability
- UL2043 Air Handling Spaces
History
- Update and Revision
- Revision Number: 0.160 Revision Date: 10-17-2019
Mechanical Characteristics
- Cable/Connector Retention
- 15 lbs.
- Connector/Hardware Retention
- 20 lbs
- Footprint/Type
- KeyConnect
- Plug/Connector Retention
- 11.250 lbs
- Plug /Jack Compatibility
- RJ45
- Termination Front Connection
- Mated Connection
- Termination Front Connection Durability
- 750 cycles
- Termination Rear Connection
- Mated Connection
- Termination Rear Connection Durability
- 20 cycles
- Tool Compatibility
- RVUTT01 Termination Tool
Part Number
- Related Parts
- Refer to REVConnect WAP - CAMERA Compatibility Guide
Physical Characteristics (Overall)
- Packaging
- Individually packaged in a plastic bag.
- Weight
- 0.016 lbs
- Wiring Scheme
- T568A/B
Product Notes
- Notes
- Please see Installation Guide PX106434.
Product Overview
- Environmental Space
- Indoor
- Suitable Applications
- 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T
Specifications
- Color
- Black
Standards
- Data Category
- Category 6A
- IEEE Specification
- Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
- Other Specification
- UL 1863, IEC 60603-7, FCC part 68-F
- Telecommunications Standards
- Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
- UL Rating
- UL94V-0
Temperature Range
- Installation Temp Range
- -10°C To +60°C
- Operating Temp Range
- -10°C To +60°C
- Storage Temp Range
- -40°C To +70°C
