Belden H155A01.00B100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

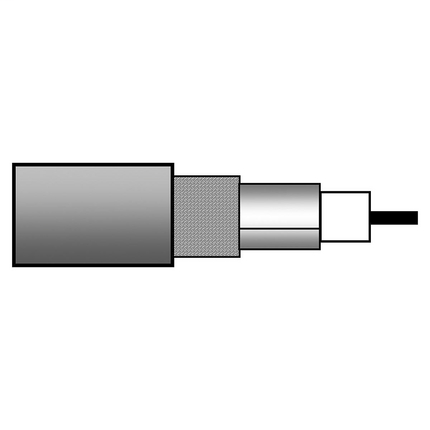

COAX RF [1.4/3.9] H155 STRANDED PEH155A01.00B100 - COAX RF H155 PE
Belden H155A01.00B100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Applicable Environmental and Other Programs
- EU RoHS Compliance Date (yyyy-mm-dd)
- 1998-01-01
Construction and Dimensions
- Min Elongation at Breakof Jacket
- 150 %
- Min Tensile Strength of Jacket
- 12.5 MPa
Electrical Characteristics
- High Freq Table Note
- In each frequency band, 3 peak values up to 4 dB lower are allowed, values above 3000 MHZ for information only
Flammability, LS0H, Toxicity Testing
- Amount of Halogen acc. to IEC 60754-1 & EN50267-1
- Zero
- ISO/IEC Flammability
- IEC 60332-1-2
History
- Update and Revision
- Revision Number: 0.155 Revision Date: 12-11-2019
Mechanical Characteristics
- Adhesion Dielectric
- 5-50 N at 25 mm N
- Crush Resistance
- Max. 1% (load of 700N) N
- Max Recommended Pulling Tension
- 100 N
- Min Bend Radius (W/o Pulling Strength)
- 60 mm
Physical Characteristics (Overall)
- Conductor Count
- 1
- Insulation, Table Note
- Centricity min. 85%
Product Overview
- Environmental Space
- Outdoor
- Suitable Applications
- 50 Ohm low loss coaxial transmission cable designed according European Standard EN 50117-1; Operating Frequencies between 5 and 6000 MHZ
Specifications
- Color
- Black
- Length
- 100 m
Standards
- CENELEC Compliance
- EN 50117-1, EN 50117-2-5 and EN 50290-2-20
- RG Type
- 58/U Type
Temperature Range
- Installation Temp Range
- -5°C To +50°C
- Operating Temp Range
- -30°C To +70°C
- Storage Temp Range
- -30°C To +70°C
