Belden H126D03.00500

Applicable Environmental and Other Programs

• EU RoHS Compliance Date (yyyy-mm-dd)
  • 1998-01-01

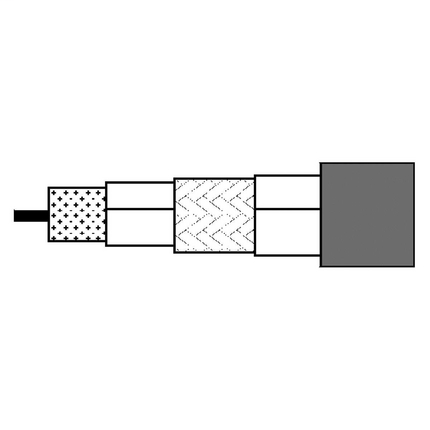

Construction and Dimensions

• Min Elongation at Breakof Jacket
  • 125 %
• Min Tensile Strength of Jacket
  • 9 MPa

Electrical Characteristics

• High Freq Table Note
  • In each frequency band, 3 peak values up to 4 dB lower are allowed
• Screening Class
  • A

Flammability, LS0H, Toxicity Testing

• Amount of Halogen acc. to IEC 60754-1 & EN50267-1
  • Zero
• ISO/IEC Flammability
  • IEC 60332-1-2 and IEC 60332-3-24
• LOI of Jacket
  • Min. 35 %

History

• Update and Revision
  • Revision Number: 0.160 Revision Date: 12-11-2019

Mechanical Characteristics

• Adhesion Dielectric
  • 7.8-78 N at 25 mm N
• Crush Resistance
  • Max. 1% (load of 700N) N
• Min Bend Radius (W/o Pulling Strength)
  • 65 mm

Physical Characteristics (Overall)

• Conductor Count
  • 1
• OuterJacket1, Table Note
  • According to European Standard HD 624

Product Overview

• Environmental Space
  • Indoor - Euroclass Dca
• Suitable Applications
  • Coaxial cables used in cabled distribution networks designed according the European Standard EN 50117-2-1 and EN 50117-2-4; Operating at frequencies between 5 MHz and 3000 MHz

Specifications

• Color
  • White
• Length
  • 500 m

Standards

• CENELEC Compliance
  • EN 50117-2-1, EN 50117-2-4 and EN 50117-1
• CPR Euroclass
  • Dca-s1,d1,a1
• RG Type
  • 6/U Type

Temperature Range

• Installation Temp Range
  • -5°C To +50°C
• Operating Temp Range
  • -30°C To +70°C
• Storage Temp Range
  • -30°C To +70°C
