AVENTICS R480627295
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

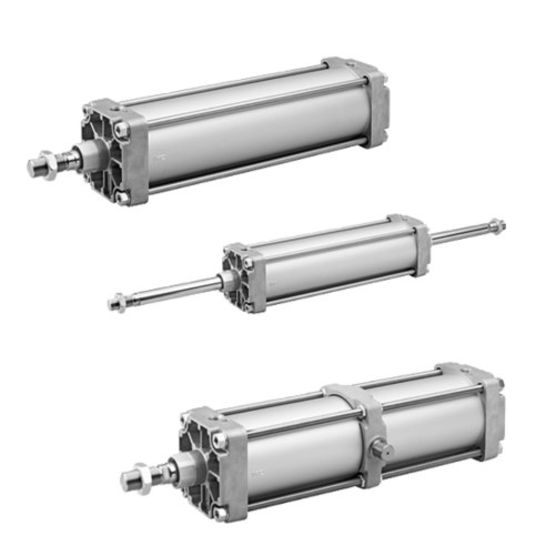

ITS-DA-160-0025-2-2-1-1-8-000-00-000-BASTie rod cylinder ISO 15552, Series ITS R480627295 - R480627295
AVENTICS R480627295 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 160 mm
- Certificates
- ATEX optional
- Compressed air connection
- G 3/4
- Cushioning
- Pneumatic adjustable cushioning
- pneumatic adjustable cushioning
- Cushioning energy
- 160 J
- Cushioning length
- 46 mm
- Environmental requirements
- Industry standard, ATEX optional
- Extracting piston force
- 12667 N
- Functional principle
- Double-acting
- Magnetic piston
- Piston with magnet
- piston with magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Medium
- Compressed air
- Min. ambient temperature
- -20 Deg C
- Piston force extending
- 12667 N
- Piston force retracting
- 11875 N
- Piston Ø
- 160 mm
- Piston rod
- single
- Piston rod thread
- M36x2
- Ports
- G 3/4
- Pressure for determining piston forces
- 6,3 bar
- Retracting piston force
- 11875 N
- Scraper
- Acrylonitrile butadiene rubber
- Standard industrial scraper
- Standards
- ISO 15552
- Stroke
- 25 mm
- Stroke Length
- 25 mm
- Stroke max.
- 2700 mm
- Weight 0 mm stroke
- 12.5 kg
- Weight +10 mm stroke
- 0.21 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 2 bar
