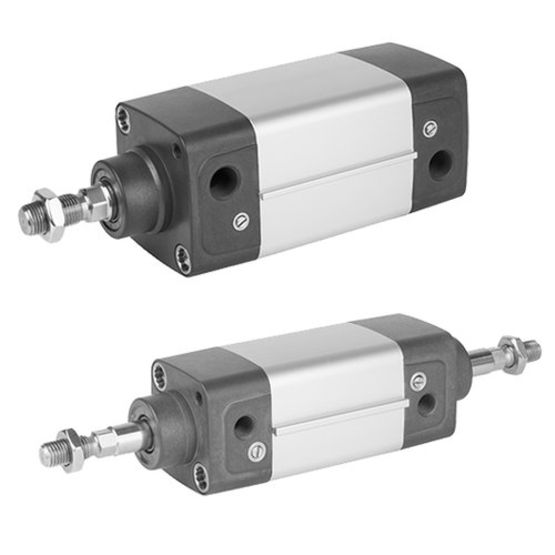

AVENTICS R480059075
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
CCL-DA-032-0100-IS-0210022211AB00000-BASISO 15552, series CCL-IS R480059075 - R480059075
AVENTICS R480059075 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 32 mm
- Certificates
- ATEX optional
- Compressed air connection
- G 1/8
- Cushioning
- pneumatic adjustable cushioning
- Pneumatic adjustable cushioning
- Cushioning energy
- 4.8 J
- Cushioning length
- 16.5 mm
- Cylinder Function
- Double-acting
- Environmental requirements
- Industry standard, suitable for use in food processing, ATEX optional, Increased corrosion protection
- Extracting piston force
- 507 N
- Functional principle
- Double-acting
- Magnetic piston
- piston with magnet
- Piston with magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Medium
- Compressed air
- Min. ambient temperature
- -20 Deg C
- Piston force extending
- 507 N
- Piston force retracting
- 435 N
- Piston Ø
- 32 mm
- Piston rod
- single
- Piston rod thread
- M10x1,25
- Ports
- G 1/8
- Pressure for determining piston forces
- 6,3 bar
- Retracting piston force
- 435 N
- Scraper
- Standard
- Polyester
- Standards
- ISO 15552
- Standards and Regulations
- ISO 15552
- Stroke
- 100 mm
- Stroke Length
- 100 mm
- Stroke max.
- 1600 mm
- Weight 0 mm stroke
- 0.61 kg
- Weight +10 mm stroke
- 0.036 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 1.5 bar
