AVENTICS R422003649
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

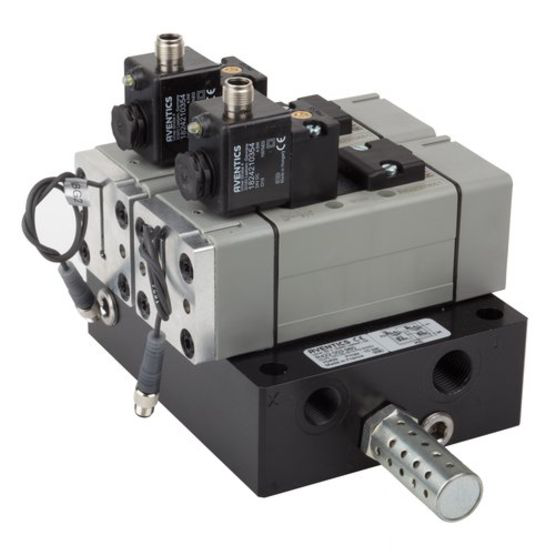

IS12-5/2NC-SR-024DC-I-ISO2-ND-PD5/2-directional valve, Series IS12-PD, size 2 R422003649 - R422003649
AVENTICS R422003649 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Actuation
- Single Solenoid
- Blocking principle
- Single base plate principle
- Compressed air connection, exhaust
- Base plate DIN ISO 5599 size 2
- Compressed air connection input
- Base plate DIN ISO 5599 size 2
- Compressed air connection output
- Base plate DIN ISO 5599 size 2
- Compressed air connection pilot exhaust
- M5
- Compressed air connection pilot input
- Base plate DIN ISO 5599 size 2
- Connection type
- Plate connection
- DC operating voltage
- 24 V
- Electrical Connection
- EN 175301-803, form A
- Electrical connection size
- EN 175301-803, form A
- Electrical connection type
- Plug
- Flow (L/M)
- 2500 l/min
- Frame size
- ISO 2
- Manual override
- without detent
- Manual Override
- without detent
- Maximum Working Pressure
- 10 bar
- Nominal flow Qn
- 2500 l/min
- Pilot
- Internal
- Pilot valve width
- 30 mm
- Power consumption DC
- 4.4 W
- Return
- with differential piston
- Sealing principle
- Soft Seal
- Standards
- ISO 5599-1
- Standards and Regulations
- ISO 5599-1
- Switching principle
- 5/2
- Valve Function
- 5/2
- Valve Pilot
- Internal
- Valve type
- Spool valve, positive overlapping
- Voltage tolerance DC
- -10% / +10%
- Working pressure max
- 10 bar
- Working pressure min.
- 3 bar
