AVENTICS R422002213
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

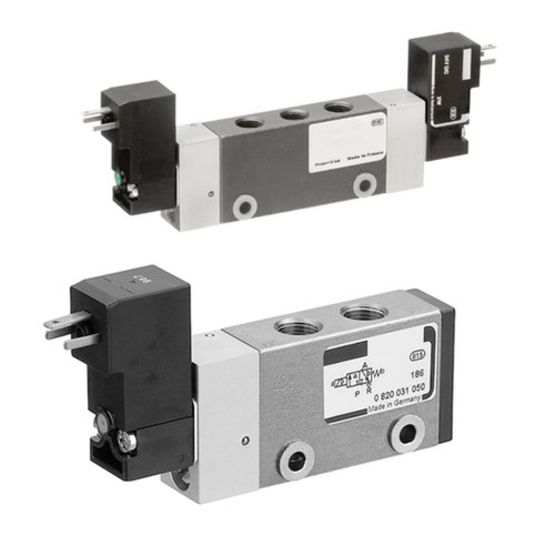

VVST-5/2SR-PAN5/2-directional valve, Series ST R422002213 - R422002213
AVENTICS R422002213 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Mechanical
- Actuating control
- Single Solenoid
- Actuating element
- panel installation
- actuating force min.
- 11 N
- Compressed air connection, exhaust
- G 1/8
- Compressed air connection input
- G 1/8
- Compressed air connection output
- G 1/8
- Compressed air connection type
- Internal thread
- Flow (L/M)
- 280 l/min
- Lock type
- not lockable
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 80 Deg C
- Max. particle size
- 5 µm
- Medium
- Compressed air
- Min. ambient temperature
- -15 Deg C
- Min. medium temperature
- -15 Deg C
- Mounting screw
- M4 with hexagon socket
- Nominal flow Qn
- 280 l/min
- Oil content of compressed air max.
- 25 mg/m³
- Oil content of compressed air min.
- 5 mg/m³
- Plate connection
- Pipe connection
- Sealing principle
- metal/metal sealing
- Switching principle
- 5/2
- Type
- Spool valve
- Valve Function
- 5/2
- Working pressure max
- 10 bar
- Working pressure min.
- -0.95 bar
