Description

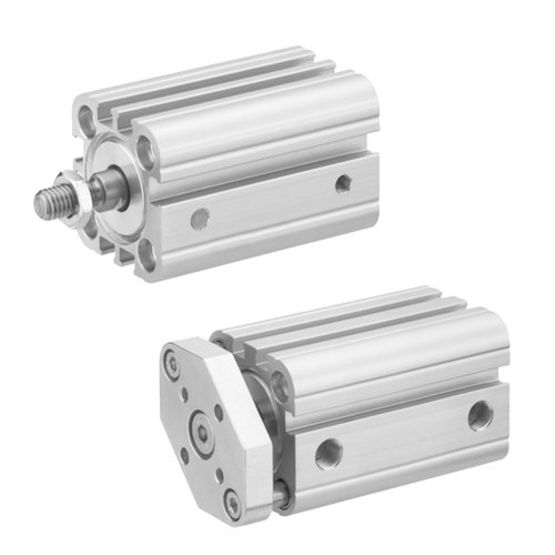

CCI-DA-100-0150-0041224110000200000000-BCompact cylinder ISO 21287, Series CCI R422001130 - R422001130
AVENTICS R422001130 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 100 mm
- Certificates
- ATEX optional
- Compressed air connection
- G 1/8
- Cushioning
- elastic cushioning
- Elastic cushioning
- Cylinder Function
- Double-acting
- Environmental requirements
- Industry standard, ATEX optional
- Extracting piston force
- 4145 N
- Functional principle
- Double-acting
- Impact energy
- 2.5 J
- Magnetic piston
- Piston with magnet
- piston with magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Medium
- Compressed air
- Min. ambient temperature
- -20 Deg C
- Min. medium temperature
- -20 Deg C
- Piston force extending
- 4145 N
- Piston force retracting
- 3886 N
- Piston Ø
- 100 mm
- Piston rod
- single
- Piston rod thread
- M12
- Ports
- G 1/8
- Pressure for determining piston forces
- 6,3 bar
- Retracting piston force
- 3886 N
- Scraper
- Polyurethane
- Standard industrial scraper
- Standards
- ISO 21287
- Stroke
- 150 mm
- Stroke Length
- 150 mm
- Stroke max.
- 500 mm
- Weight 0 mm stroke
- 2.15 kg
- Weight +10 mm stroke
- 0.168 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 1 bar
