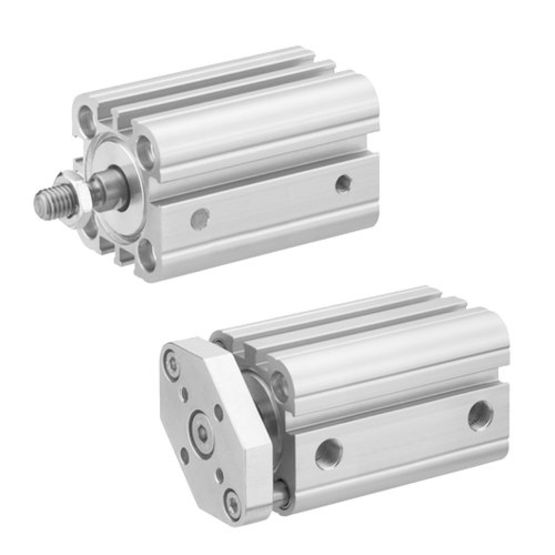

AVENTICS R422001088
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
CCI-DA-063-0060-0041224110000200000000-BCompact cylinder ISO 21287, Series CCI R422001088 - R422001088
AVENTICS R422001088 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 63 mm
- Certificates
- ATEX optional
- Compressed air connection
- G 1/8
- Cushioning
- Elastic cushioning
- elastic cushioning
- Cylinder Function
- Double-acting
- Environmental requirements
- Industry standard, ATEX optional
- Extracting piston force
- 1964 N
- Functional principle
- Double-acting
- Impact energy
- 1.3 J
- Magnetic piston
- Piston with magnet
- piston with magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Medium
- Compressed air
- Min. ambient temperature
- -20 Deg C
- Min. medium temperature
- -20 Deg C
- Piston force extending
- 1964 N
- Piston force retracting
- 1827 N
- Piston Ø
- 63 mm
- Piston rod
- single
- Piston rod thread
- M10
- Ports
- G 1/8
- Pressure for determining piston forces
- 6,3 bar
- Retracting piston force
- 1827 N
- Scraper
- Polyurethane
- Standard industrial scraper
- Standards
- ISO 21287
- Stroke
- 60 mm
- Stroke Length
- 60 mm
- Stroke max.
- 300 mm
- Weight 0 mm stroke
- 0.689 kg
- Weight +10 mm stroke
- 0.087 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 1 bar
