Description

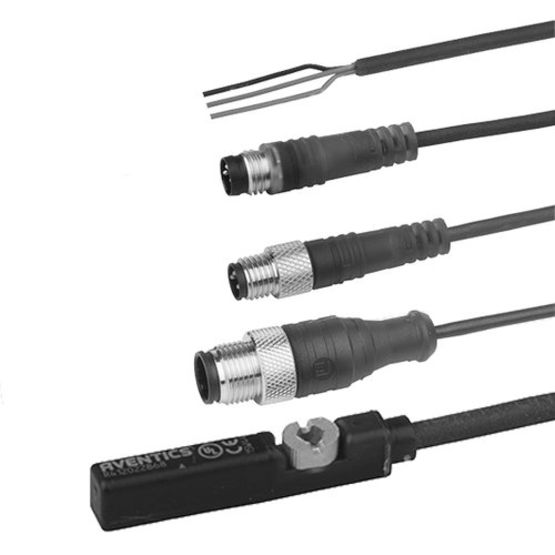

ST6-PN-K05U-030Sensor, Series ST6 R412022855 - R412022855
AVENTICS R412022855 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Sensors
- Cable
- with cable
- Cable Length
- 5 m
- Certificates
- CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
- Contacts
- electronic PNP
- Cylinder series
- TRR
- DC switching current, max.
- 0.13 A
- Direct mounting for series
- PRA, PRE, CCI, KPZ, SSI, GPC, CVI
- Electrical connection 2, number of poles
- 3-pin
- Electrical connection 2, type
- open cable ends
- Electrical Connection Type
- open cable ends
- Hysteresis
- ≥ 0,2 mT
- Indirect mounting for series
- TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
- LED color
- Yellow
- LED status display
- Yellow
- Max. ambient temperature
- 80 Deg C
- Max. switching frequency
- 1000 Hz
- Min. ambient temperature
- -30 Deg C
- Nominal current, actuated state
- < 30 mA
- Number of Wires
- 3-pin
- Operating voltage DC, max.
- 30 V DC
- Operating voltage DC, min.
- 10 V DC
- Output Signal
- PNP
- Protection class
- IP65, IP67, IP69K
- IP69K|IP65
- Quiescent current (without load)
- < 8 mA
- Shock resistance
- 30 g / 11 ms
- Short circuit resistance
- short circuit resistant, Protected against polarity reversal
- Slot width
- 6 mm T-slot
- Supply voltage DC max.
- 30 V DC
- Switching logic
- NO (make contact)
- Switching point precision
- ±0,1 mT
- Type of contact
- electronic PNP
- Vibration resistance
- 10 - 55 Hz, 1 mm
- Voltage drop U at Imax
- ≤ 2,5 V
