Description
AES-D-BC-ECATSeries AES R412018225 - R412018225

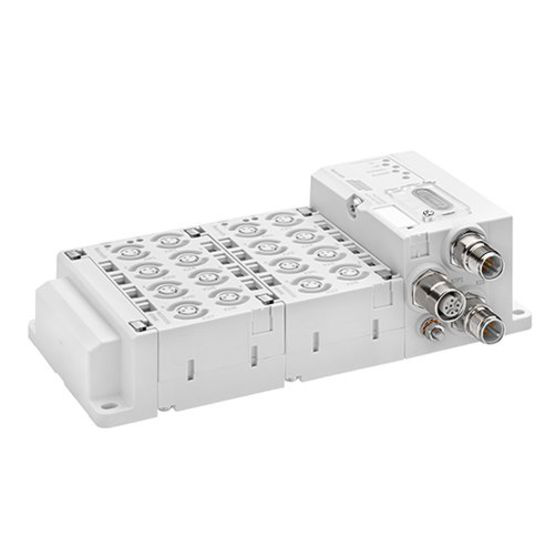

AVENTICS R412018225 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Fieldbus coupler, AES series
- Communication port
- Socket (female)
- Communication Protocol
- EtherCAT
- Cycle time at 256Â bits
- < 1 ms
- Diagnosis
- Short circuit, Undervoltage
- Electrical Connection
- M12
- Electrical connection coding
- A-coded
- Electrical connection number of poles
- 4-pin
- Electrical connection size
- M12
- Electrical connection type
- Plug (male)
- Electronics voltage tolerance
- -25% / +25%
- Fieldbus design
- D-design
- Fieldbus protocol
- EtherCAT
- Generic emission standard in accordance with norm
- EN 61000-6-4
- Generic immunity standard in accordance with norm
- EN 61000-6-2
- I/O module extension max.
- 10
- Logic/actuator voltage
- Galvanically isolated
- Max. ambient temperature
- 60 Deg C
- Max. number of valve positions
- 64
- Min. ambient temperature
- -10 Deg C
- Note
- Fieldbus connection with I/O functionality, Do not use in new constructions!
- Number of solenoid coils max.
- 128
- Number of Wires
- 4-pin
- Operating voltage, actuators
- 24 V DC
- Operational voltage electronics
- 24 V DC
- Power consumption electronics
- 0.1 A
- Protection class
- IP65
- Total current for actuators
- 4 A
- Version
- Bus coupler
