AVENTICS R412017962
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

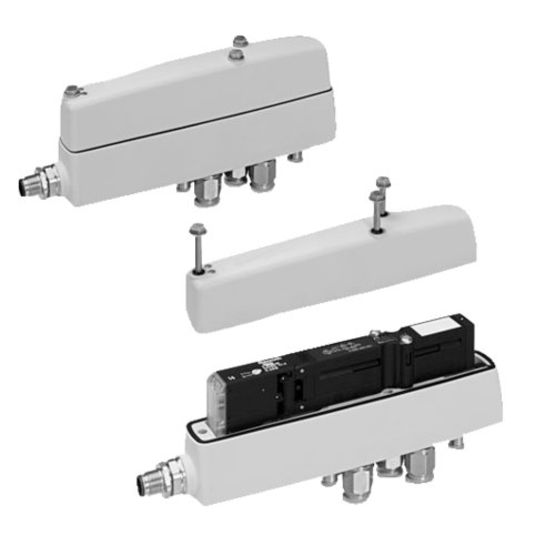

CL03-EV 5/2SR-024DC/NI/IP69K5/2-directional valve, Series CL03-EV R412017962 - R412017962
AVENTICS R412017962 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Single Solenoid
- Blocking principle
- Single base plate principle
- Certificates
- UR (Underwriters Laboratories)
- Compressed air connection output
- Ø 8
- Diameter 8
- Connection type
- Plate connection
- Control pressure max.
- 10 bar
- Control pressure min.
- 3 bar
- DC operating voltage
- 24 V
- Flow (L/M)
- 700 l/min
- Manual override
- with detent
- Manual Override
- with detent
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 50 Deg C
- Min. ambient temperature
- 0 Deg C
- Min. medium temperature
- 0 Deg C
- Nominal flow Qn
- 700 l/min
- Pilot
- External
- Pilot valve width
- 16 mm
- Return
- with spring/air spring return
- Return type
- with spring/air spring return
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- suitable for use in food processing
- suitable for use in food processing
- Switching principle
- 5/2
- Valve Function
- 5/2
- Valve Pilot
- External
- Valve type
- Spool valve, positive overlapping
- Voltage tolerance DC
- -15% / +20%
- Working pressure max
- 10 bar
- Working pressure min.
- -0.9 bar
