Description

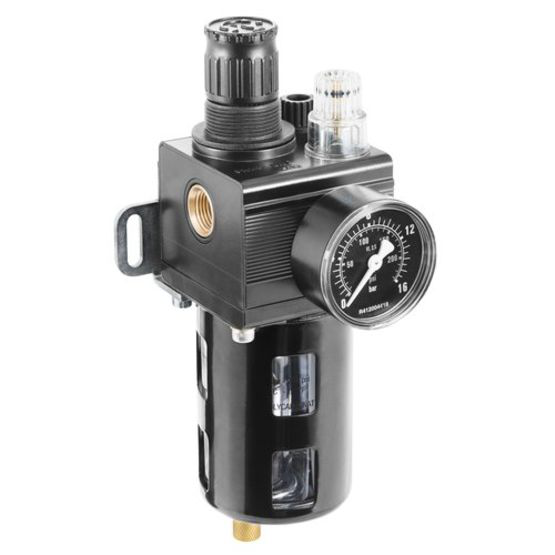

NLC-FRL-N034-GAU-100-PBS-HO-40,00Universal air preparation unit, Series NLC - inch R412010827 - R412010827
AVENTICS R412010827 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Compressed air connection
- 3/4 NPT
- Condensate drain
- semi-automatic, open without pressure
- Filter element
- exchangeable
- filter porosity
- 40 µm
- Filter porosity
- 40 µm
- Filter reservoir volume
- 75 cm³
- Flow (L/M)
- 3200 l/min
- Housing material
- Die cast zinc
- Housing Material
- Die cast zinc
- Lubricator reservoir volume
- 150 cm³
- Maintenance Unit Parts
- Pressure regulator|Filter|Lubricator
- Max. ambient temperature
- 60 Deg C
- Maximum Ambient Temperature
- 60 °C
- Maximum Working Pressure
- 16 bar
- Medium
- Neutral gases, Compressed air
- Min. ambient temperature
- -10 Deg C
- Minimum Ambient Temperature
- -10 °C
- Mounting orientation
- vertical
- Nominal flow Qn
- 3200 l/min
- Oil dosing at 1000 l/min
- 1-2 drops
- Parts
- Lubricator, Pressure regulator, Filter
- Port
- 3/4 NPT
- Pressure gauge
- with pressure gauge
- Pressure supply
- single
- Regulation range max.
- 10 bar
- Regulation range min.
- 0.5 bar
- Regulation Range min.
- 0.5 bar
- Regulator function
- with relieving air exhaust
- Regulator type
- Diaphragm-type pressure regulator
- Sealing Material
- Acrylonitrile butadiene rubber
- Seal material
- Acrylonitrile butadiene rubber
- Secondary exhaust
- with relieving air exhaust
- Type
- 1-part
- Type of filling
- Manual oil filling
- Working pressure max
- 16 bar
- Working pressure min.
- 0.5 bar
