Description

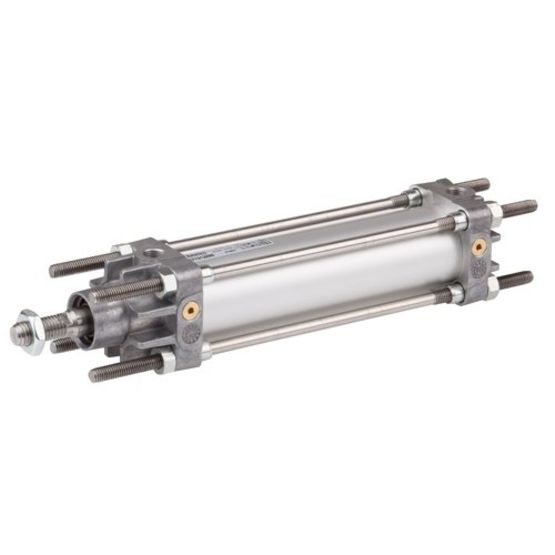

C12P-160-0150-22101MA11G00-M00-000-0000Tie rod cylinder, CNOMO NFE 49-001, Series C12P 7472408207 - 7472408207
AVENTICS 7472408207 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 160 mm
- Compressed air connection
- G 3/4
- Cushioning
- Pneumatic adjustable cushioning
- pneumatic adjustable cushioning
- Environmental requirements
- Industry standard
- Extracting piston force
- 12667 N
- Functional principle
- Double-acting
- Magnetic piston
- Piston with magnet
- piston with magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Max. medium temperature
- 80 Deg C
- Max. particle size
- 50 µm
- Medium
- Compressed air
- Min. ambient temperature
- -20 Deg C
- Min. medium temperature
- -20 Deg C
- Piston force extending
- 12667 N
- Piston force retracting
- 11875 N
- Piston Ø
- 160 mm
- Piston rod
- single
- Piston rod thread
- M36x2
- Ports
- G 3/4
- Pressure for determining piston forces
- 6,3 bar
- Retracting piston force
- 11875 N
- Scraper
- Standard industrial scraper
- Standards
- CNOMO / NFE 49-001
- Stroke
- 150 mm
- Stroke Length
- 150 mm
- Stroke max.
- 2600 mm
- Weight 0 mm stroke
- 11.6 kg
- Weight +10 mm stroke
- 0.352 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 2 bar
