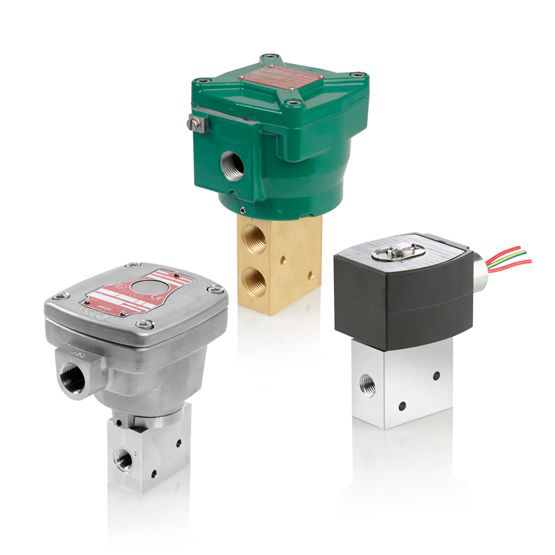

ASCO WSNFET8327B102.24/DC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
ASCO WSNFET8327B102.24/DC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuation
- Solenoid - Direct Acting
- Body Material
- Stainless Steel
- Coil Class
- H
- Flow (Cv) / Flow (Kv)
- 0.52 / 0.45
- Function
- 3/2 Universal
- Maximum Ambient Temperature
- 60
- Maximum Operating Pressure (Air)
- 10
- Maximum Operating Pressure (Light Oil)
- 10
- Maximum Operating Pressure (Water)
- 10
- Media
- Water; Light Oil; Air, Inert Gas
- Air, Inert Gas|Light Oil|Water
- Minimum Ambient Temperature
- -20
- Minimum Operating Pressure (Air)
- 0
- Minimum Operating Pressure (Light Oil)
- 0
- Minimum Operating Pressure (Water)
- 0
- Min to Max Ambient Temperature
- -20 - 60 °C
- Min to Max Fluid Temperature
- -20 - 60 °C
- Min to Max Operating Pressure (Air)
- 0 - 10 bar
- Min to Max Operating Pressure (Light Oil)
- 0 - 10 bar
- Min to Max Operating Pressure (Water)
- 0 - 10 bar
- Operating Environment
- Hazardous
- Orifice
- 5.7
- Orifice Size
- 5.7 mm
- Pipe/Port Size
- 1/4"
- Pipe/Port Type & Size
- NPTF 1/4
- Pressure Port/Fitting
- NPTF
- Product Type
- Solenoid Valve
- Product Weight
- 3.70 kg
- Sealing Material
- FPM
- Standards & Regulations
- ATEX Zone 1-21;#IEC 61508
- Valve Actuation
- Solenoid - Direct Acting
- Valve Function
- 3 way - 3/2 Universal
- Voltage
- 24 DC
- 24 Volts DC
- Wattage
- 3.6
Williams Automation sells ASCO parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
