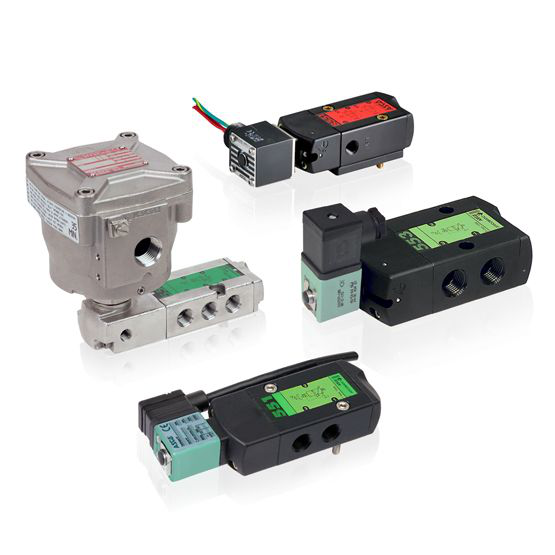

ASCO SCG551A001MS.24/DC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
SPOOL VALVE 551 NAMUR 3/2 - 5/2 SPRING RETURN WITH MANUAL OVERRIDE COMPLETE REFERENCE : SC G551A001 MS,24/DC.SCG551A001MS 24/DC - SCG551A001MS.24/DC
ASCO SCG551A001MS.24/DC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuation
- Solenoid - Pilot Operated
- Body Material
- Light Alloy
- Coil Class
- F
- Connector
- Included (EN175301-803, industry standard form B)
- Flow (Cv) / Flow (Kv)
- 0.69 / 0.60
- Function
- 3/2 Normally Closed - 5/2 Spring Return
- Maximum Ambient Temperature
- 60
- Maximum Operating Pressure (Air)
- 10
- Maximum Operating Pressure (Water)
- 0
- Media
- Air, Inert Gas
- Minimum Ambient Temperature
- -25
- Minimum Operating Pressure (Air)
- 2
- Min to Max Ambient Temperature
- -25 - 60 °C
- Min to Max Fluid Temperature
- -25 - 60 °C
- Min to Max Operating Pressure (Air)
- 2 - 10 bar
- Orifice
- 6
- Orifice Size
- 6 mm
- Pipe/Port Size
- 1/4"
- Pipe/Port Type & Size
- G 1/4 (ISO 228/1)
- Pressure Port/Fitting
- G ISO228/1-G BSPP
- Product Type
- Solenoid Valve
- Product Weight
- 0.34 kg
- Sealing Material
- NBR + PUR
- Valve Actuation
- Solenoid - Pilot Operated
- Valve Function
- 3/2 Normally Closed - 5/2 Spring Return
- Voltage
- 24 DC
- 24 Volts DC
- Wattage
- 2.5
- Watt Rating
- 2.5 W
