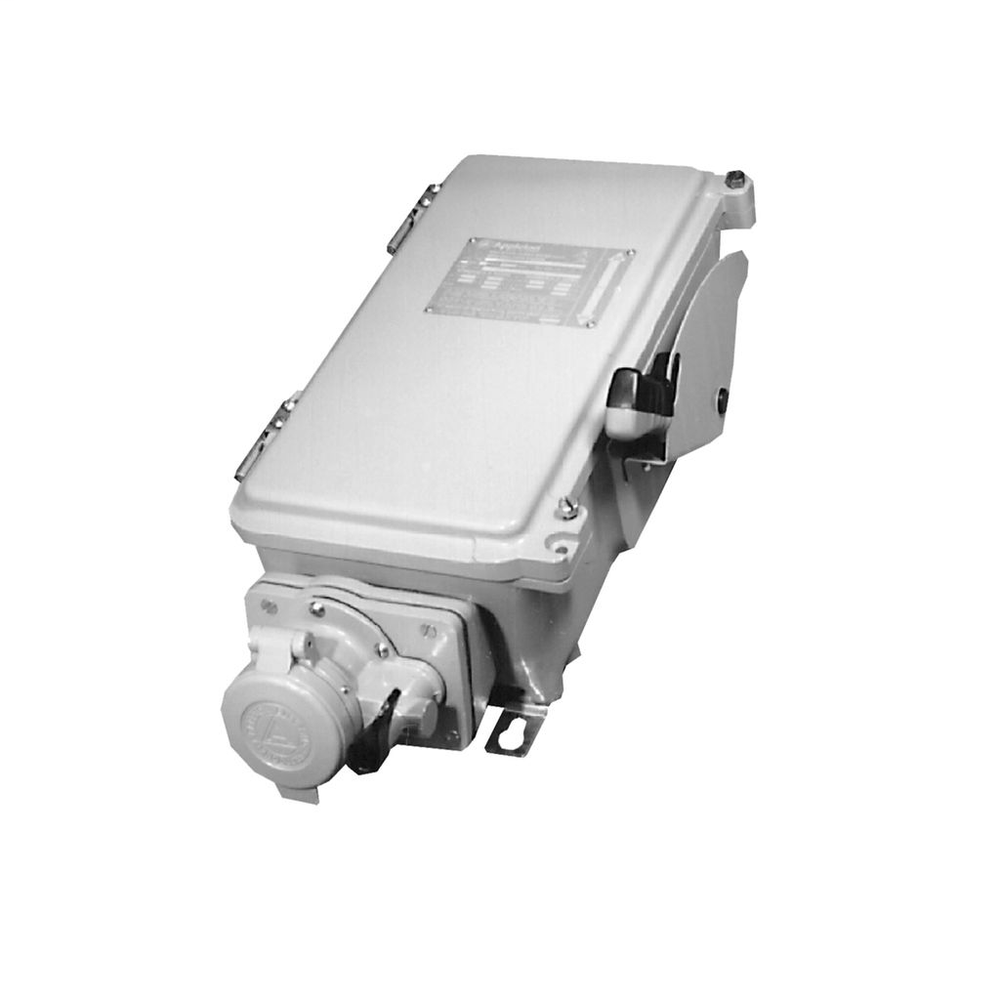

Appleton WRDK6034
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
WSR Interlocked Receptacles are designed to prevent electrical arcing when fixed or portable heavy duty equipment is used in adverse environments. Available in 30, 60 and 100 Amp designs, these metallic receptacles feature either a fused or non-fused disconnect and mechanical interlock that prevents plug removal under load. With a plug engaged and the switch in the ON position, the plug can't be removed. With the switch turned OFF and the plug removed, the receptacle can't be energized.Appleton™ WSR 30, 60 and 100 Amp Series Interlocked Receptacles - PN WRDK6034
Appleton WRDK6034 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Area Classification
- Listed for Ordinary (Unclassified) Locations; NEMA 3, 3R, 4, 4X, 12
- Hertz
- 50/60 Hz
- Horsepower Ratings
- 7.5, 15, 30, 60 or 75
- Materials and Finishes
- Receptacle assembly and WSR enclosure are copperfree (4/10 of 1% max.) aluminum with epoxy powder coating inside and outside. Handle is high impact polymer.
- Number of Poles
- 4
- Number of Wires
- 3
- Type of Cable
- #6 to #2, #14 to #2, #14 to #1/0 AWG
- Voltage
- 600 Vac/250 Vdc
