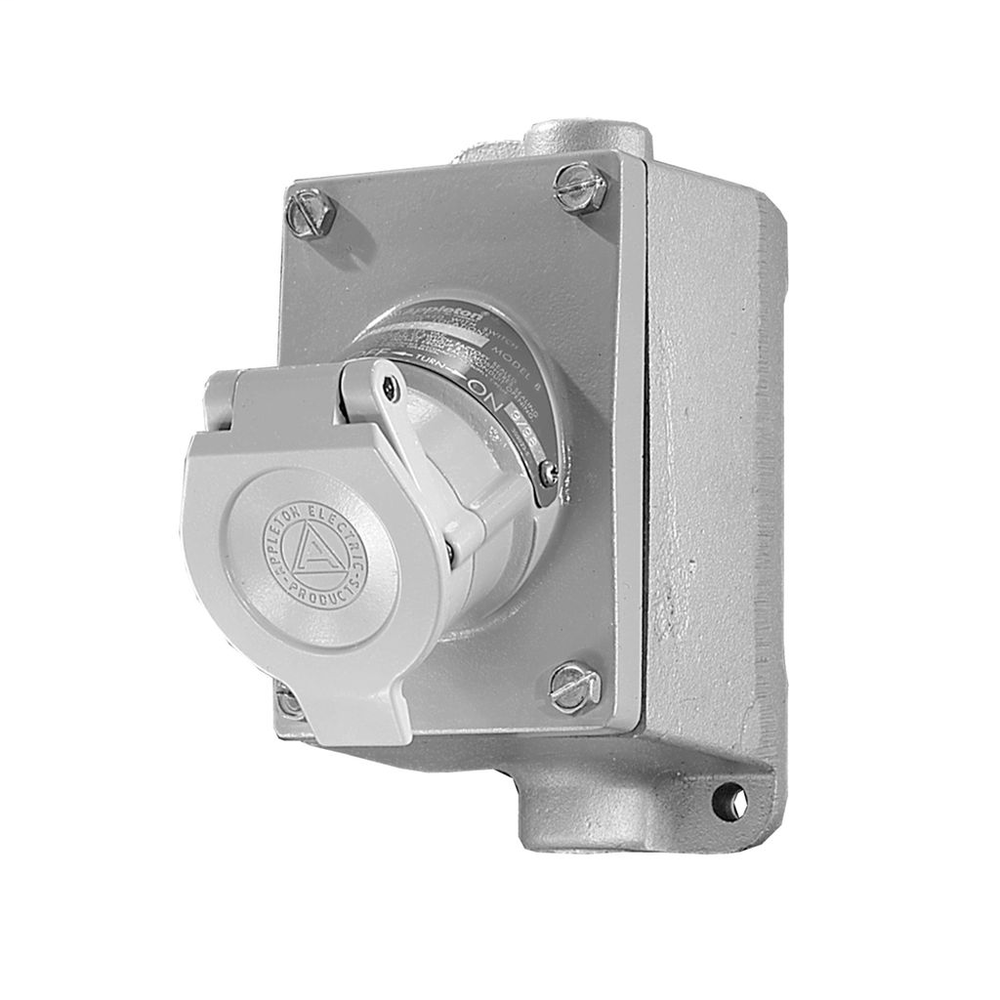

Appleton ENR5201
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
U-Line™ Contender™ Factory Sealed 20 Amp Plugs and Receptacles feature a dead front design making them ideal for use with electrical equipment in hazardous locations. The neoprene gasket in the throat of the receptacle seals against the plug or the spring-loaded cover to seal out water, dust and corrosive compounds. Although U-Line plugs can be used with ordinary receptacles, U-Line receptacles are designed so that they can't be energized by an ordinary plug.Appleton™ U-Line™ Contender™ Factory Sealed 20 Amp Plugs and Receptacles - PN ENR5201
Appleton ENR5201 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Aluminum Material and Finish
- Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat
- Amperage
- 20
- Hazardous Area Classification
- Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; NEMA 3RX, 7CD, 9FG
- Insulator Block Material
- Glass-filled reinforced polyester
- Malleable Iron Material and Finish
- Mounting boxes are malleable iron with a triple coat finish of (1) zinc electroplate (2) chromate and (3) epoxy powder coat
- Mounting Box Entries
- Dead-End or Feed-Thru
- Number of Poles
- 3
- Number of Wires
- 2
- Plug Cable Diameter
- .538 – .639
- Voltage
- 125 Vac or 250 Vac
