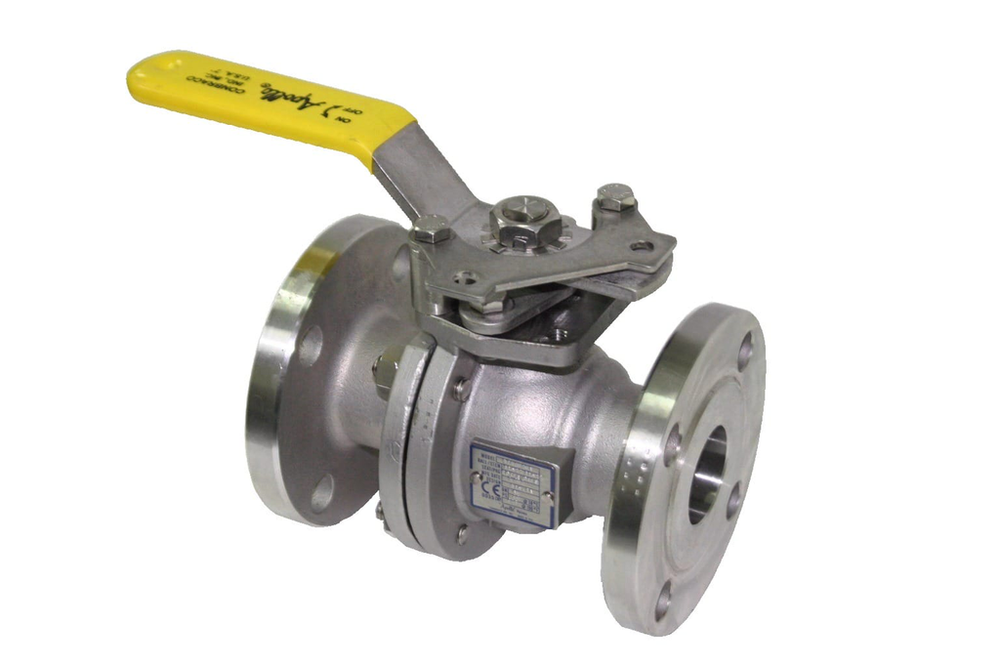

Apollo Valves 87A20501
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The 87A-200 Stainless Steel Standard Port Ball Valve is an outstanding solution for secure and effective fluid flow control. It features a two-position locking device and chevron-style adjustable stem seals for efficient operation. Additional features such as anti-static grounded ball and stem, blowout-proof stem design, and a cast boss for bleed/drain port ensure superior performance and reliability. |Two Position Locking Device (Valves 6” Full Port, 8” Standard Port and smaller) |Chevron Style Adjustable Stem Seals |ISO 5211 Mounting Pad Bolt Pattern |Slot Vented Ball for Thermal Expansion |Rated up to 150psi Saturated Steam: ASME Class 150, 300, & 600 Valves |Rated up to 250psi Saturated Steam: ASME Class 300 Valves Require the -65 Option |ASME Class 600 Valves Require the -24-80 Options or -38 Option |Anti-static Grounded Ball and Stem |Blowout-Proof Stem Design |Cast Boss for Bleed / Drain Port |Vacuum Service to29 inches of Hg |NACE MR0175 (2000) Compliance on all 87A/87B/88A/88B/88L Valves with Stainless Steel Ball & Stem |NACE MR0103 (2003) Compliance on all 87A/87B/88A/88B/88L Valves with Stainless Steel Ball & StemApollo Stainless Steel Full Port Ball Valve Standard Configuration 1" (2 x Flange)
Apollo Valves 87A20501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection Information
- CT1
- flange
- CT2
- flange
- Material connection 1
- stainless steel
- Material connection 2
- stainless steel
- Material quality connection 1
- CF8M (1.4408)
- Material quality connection 2
- CF8M (1.4408)
- Number of connections
- 2
- Subtype of connection 1 - CT1_sub
- ANSI Class 125/150
- Subtype of connection 2 - CT2_sub
- ANSI Class 125/150
Specifications
- Applications
- compressed air, natural gas
- Capped
- No
- Color
- silver, yellow
- Grease-free
- No
- Height
- 5.62 in
- Length
- 9.5 in
- Material housing
- stainless steel
- Material quality
- CF8M (1.4408)
- Materials
- stainless steel
- Material spindle
- Stainless steel
- Medically clean
- No
- Series
- 87A Series Ball Valves
- Shape
- straight
- Size description
- 1" (DN25)
- Solutions
- industry
- System-specific
- Yes
- Weight
- 7 LBR
- Width
- 6.5 in
