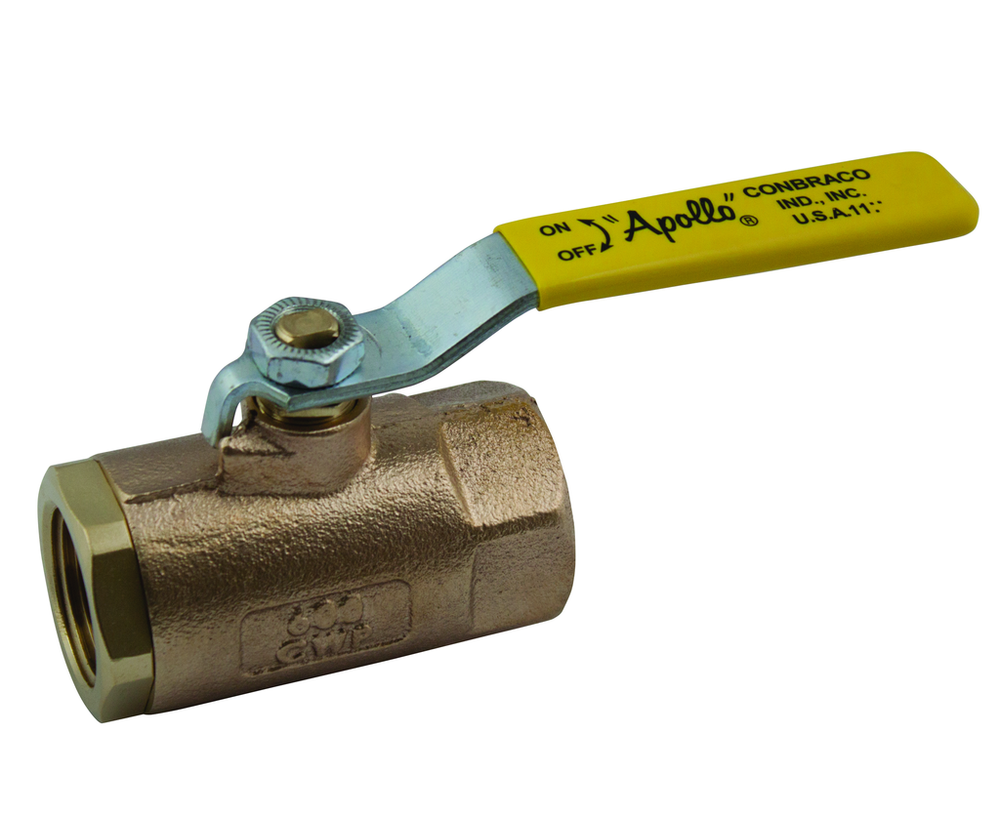

Apollo Valves 7010101
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Apollo Valves 7010101 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection Information
- CT1
- FPT - female thread conical (NPT)
- CT2
- FPT - female thread conical (NPT)
- Material connection 1
- bronze
- Material connection 2
- brass
- Material quality connection 1
- ASTM B584-C84400
- Material quality connection 2
- ASTM B16
- Number of connections
- 2
Specifications
- Applications
- heating, cooling, steam, vacuum
- Capped
- No
- Color
- yellow, bronze
- D1
- 0.5401574803149607
- D2
- 0.5401574803149607
- Distance to operating element (v)
- 2.06
- Grease-free
- No
- Height
- 5.62 in
- L1
- 1.03
- L2
- 1.03
- Length
- 9.5 in
- Material housing
- bronze
- Material quality
- ASTM B584-C84400
- Materials
- bronze
- Material spindle
- Brass
- Medically clean
- No
- Model
- 2-part
- Offset height handle (h2)
- 0.5
- Series
- 70 Series Ball Valves
- Shaft distance 1 operating element (m1)
- 0.55
- Shaft distance 2 operating element (m2)
- 3.87
- Shape
- straight
- Size description
- 1/4" (DN8)
- Solutions
- building installations
- System-specific
- Yes
- Weight
- 0.5500000000000002 LBR
- Width
- 6.5 in
- With aerator
- No
- With connection coupling 1
- No
- With connection coupling 2
- No
- With hose connection
- No
- With insulation
- No
- With non return valve
- No
- With pressure gauge
- No
- With thermometer
- No
- Z1
- 0.61
- Z2
- 0.61
Williams Automation sells Apollo Valves parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
