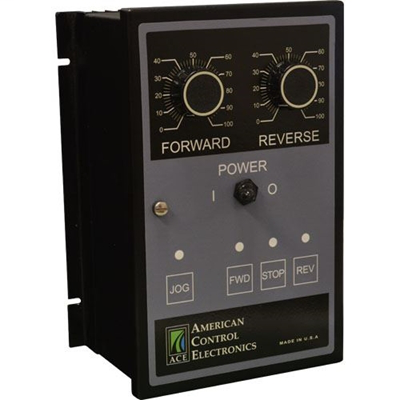

American Control Electronics RGA440-3-CYC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The RGA-CYC Series is our RGA400 controls with an added logic board. These controls are dual voltage, fully-featured regen drives in a rugged enclosure. These high performance controls maintain motor speed with automatic motoring and braking torque, while allowing high-duty cycle reversing and braking, great for limit switch applications. The RGA-CYC have conveniently mounted operators. Included are a power on/off switch and separate forward and reverse speed potentiometers so independent speeds for each direction can be easily set. Controlling the motor is easy too, by pressing a button on the membrane panel for stop, run, reverse, or jog (jog speed is adjustable). The user can also wire in remote pushbuttons in conjunction with the on-board buttons. These controls can operate in several modes with either one or two limit switches, including continuous cycling, single cycle, dwell and more - including adjustable stop and dwell times!RGA Series RGA440-3-CYC RGA-CYC Series
American Control Electronics RGA440-3-CYC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- Yes (Regenerative)
- Enclosure
- NEMA 4X
- Field / Shunt Supply
- 50 / 100, 100 / 200
- Input Voltage (VAC)
- 115, 230
- Isolation
- No
- Maximum Current (ADC)
- 3
- Model Number
- RGA440-3-CYC
- Output Voltage (VDC)
- 0 - 90, 0 - 90, 0 - 180
- Power Range HP
- 1/20 - 1/4, 1/20 - 1/4, 1/10 - 1/2
- Power Range kW
- .04 - .19, .04 - .19, .07 - .37
- Reversing
- Yes (Regenerative)
