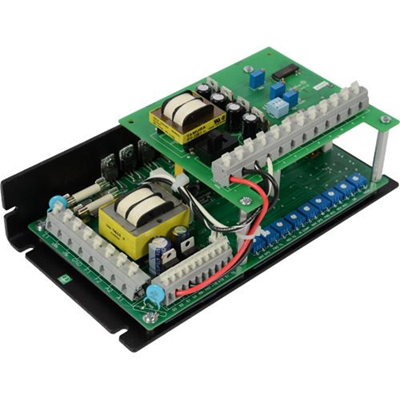

American Control Electronics RGA403-10
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The RGA series of 4Q drives is well suited for applications that require the control of overhauling loads, frequent reversing or breaking. With on-board fusing and cage clamp power and logic terminals, installation has been made simple. Available in either open chassis style or in a NEMA 4X enclosure, the RGA series can be used in a wide range of environments. With the available field supply for shunt-wound motors, full assortment of adjustments that are standard on all our 4Q drives, and optional factory installed isolation module, the RGA series is a flexible and well equipped member of our 4Q family of drives.RGA Series RGA403-10
American Control Electronics RGA403-10 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- Yes (Regenerative)
- Enclosure
- Chassis
- Field / Shunt Supply
- 50 / 100, 100 / 200
- Input Voltage (VAC)
- 115, 230
- Isolation
- 0±10, 0±250 VDC || 1-5, 4-20, 10-50 mA
- Maximum Current (ADC)
- 10
- Model Number
- RGA403-10
- Output Voltage (VDC)
- 0 - 90, 0 - 90, 0 - 180
- Power Range HP
- 1/8 - 1, 1/8 - 1, 1/4 - 2
- Power Range kW
- .09 - .75, .09 - .75, .19 - 1.5
- Reversing
- Yes (Regenerative)
