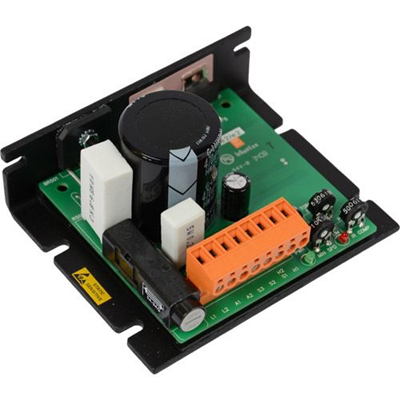

American Control Electronics PWP100-2-QDT
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The PWP series is an economical and compact solution for those who seek the benefits of Pulse Width Modulation (PWM) technology. The almost pure DC voltage provided by the PWP series allows for quieter and cooler operation of any permanent magnet DC motor. The 1.05 form factor of the DC output extends motor brush life and allows for an increase in motor torque throughout the speed range. With a full range of adjustments, such as Maximum Speed, Current Limit, IR Compensation, and available with an isolated input, the PWP series can easily be calibrated to run a wide range of motors from 1/100 to 1 HP. Because of PWMs superiority over SCR technology, this series is the perfect choice for any application where extending motor life is desired.PWP Series PWP100-2-QDT
American Control Electronics PWP100-2-QDT is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- No
- Enclosure
- Chassis
- Field / Shunt Supply
- No
- Input Voltage (VAC)
- 115
- Isolation
- No
- Maximum Current (ADC)
- 2
- Model Number
- PWP100-2-QDT
- Output Voltage (VDC)
- 0 - 90 / 130
- Power Range SCR Rated (PWM Rated) HP
- 1/20 - 1/5 (1/4)
- Power Range SCR Rated (PWM Rated) kW
- .04 - .15 (.19)
- Reversing
- No
